Product Name

EIB BUS 2x2x0,8

Performance Characteristics

PN-EN50575
PN-EN50575
Indoor application
Indoor application
Flame retardant PN-EN 60332-1-2
Flame retardant PN-EN 60332-1-2
EIB BUS 2x2x0,8
Application Construction Technical Data Special Designs Downloads

Cables EIB BUS and EIB BUS-H cables are intended for connecting control and signalling equipment operating in intelligent buildings according to European Installation Bus (EIB) systems. The cable is protected by an overall electrostatic shield against external electric interferences and prevents emission of interferences produced in the cable. Cables pass combustibility test according to EN 60332-3 standard. EIB BUS-H cable is applied in locations where, in case of fire, higher safety for human beings and expensive electronic equipment is required. The cable is flame retardant and its smoke emission is low, emitted fumes are non toxic and non corrosive. The cables are suitable for fixed indoor installations.
CONSTRUCTION EIB BUS 2X2X0,8
  • bare annealed copper single wire round conductors of diameter 0.8 mm,
  • PVC insulation - white, yellow, red and black,
  • insulated conductors twisted into a quad,
  • cable core wrapped in a polyester tape,
  • overall electrostatic shield incorporating a plastic laminated metal foil and a tinned copper drain wire,
  • PVC cable sheath (oxygen index bigger than 29%), green RAL 6018, other colours also available.

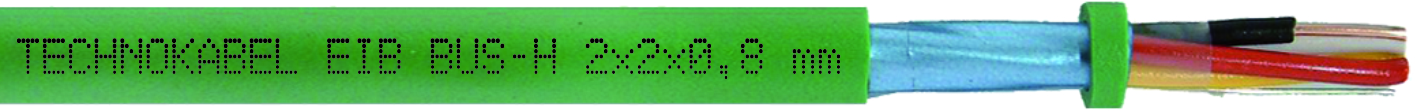

CONSTRUCTION EIB BUS-H 2X2X0,8
  • bare annealed copper single wire round conductors of diameter 0.8 mm,
  • PE insulation - white, yellow, red and black,
  • insulated conductors twisted into a quad,
  • cable core wrapped in a polyester tape,
  • overall electrostatic shield incorporating a plastic laminated metal foil and a tinned copper drain wire,
  • cable sheath of halogen free compound, green RAL 6018, other colours also available.
Characteristics Descritpion
Characteristic impedance (EIB BUS-H) 100 ± 20 Ω
Mutual capacitance at 1 kHz (EIB BUS) 100 ± 5 nF/km
Mutual capacitance at 1 kHz (EIB BUS-H) 47 ± 5 nF/km
Minimum insulation resistance 200 MΩ∙km
Operating voltage 150 V
Voltage test 1500 V sk
Maximum DC loop resistance at 20°C 75 Ω/km
Operating temperature range during operation from - 30 to + 70 °C
Operating temperature range during installation from - 5 to + 50 °C
Minimum bending radius 10 x cable diameter
Cable combustibillity flame retardant
Combustibillity tests PN-EN 60332-1-2, IEC 60332-1-2, PN-EN 60332-3-24 , IEC 60332-3-24
Oil resistance PN-EN 60811-404
Reference standards WT-TK-4
CPR-class reaction on fire Eca
DoP declarations are available at technokabel.com.pl
The cable meets requirements of the low voltage direction 2014/35/UE

    EIB BUS 3x2x0,8 mm -cable with three pairs. EIB-CY BUS - tinned copper wire braid shielded cable.
Item Index Item Name CPR Class Outer Diameter (approx.) mm Cable Weight (approx.) kg/km Cu Index
Item Index: 0626 001 26 Item Name: EIB BUS 2x2x0,8 CPR Class: Eca Outer Diameter (approx.) mm: 6.1 Cable Weight (approx.) kg/km: 52.5 Cu Index: 20.5
