Product Name

IB-YSL(St)Y PIMF 18x2x0,75

Performance Characteristics

PN-EN50575
PN-EN50575
Indoor application
Indoor application
Outdoor application
Outdoor application
Flame retardant PN-EN 60332-1-2
Flame retardant PN-EN 60332-1-2
UV resistance
UV resistance
Oil resistance
Oil resistance

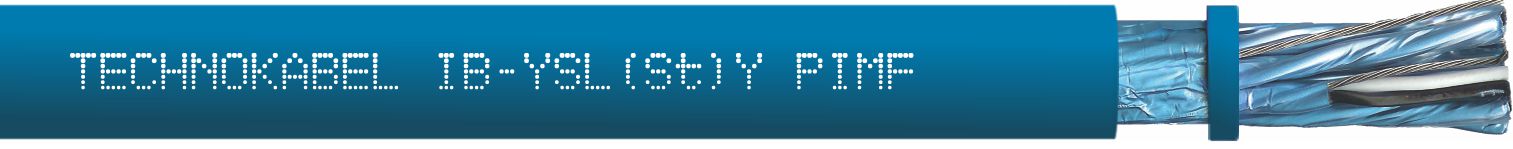

IB-YSL(St)Y PIMF 18x2x0,75
Application Construction Technical Data Special Designs Downloads

Application

TECHNOKONTROL IB-YSL(St)Y PIMF are multipair, pair and overall shielded cables, intended for intrinsically safe circuits and explosive conditions zones, designed for the operating voltage 300/500 V. Shielded pair structure substantially decreases mutual influence between signals transmitted along the cable. The cables are protected by an overall electrostatic shield against external electric interferences. The cables are designed to offer high flexibility combined with tensile strength. Sheathing PVC of high oxygen index is UV radiation and weather resistant, is self-extinguishing and flame retardant. The cables pass combustibility test according to PN-EN 60332-3 standard. The cables are oil-resistant and designed for frequent contact with petroleum products, as in petrol stations and stores, where engine fuels and lubricants are pumped or handled. The cables are suitable for fixed indoor and outdoor installations.

Structure


  • flexible, multiwire conductors, stranded of bare annealed copper wires (tin-plated on request), meeting requirements of class 2 per PN-EN 60228,
  • PVC insulation, identification of pairs:
”a” wire – black insulation and white pair number printed on it, ”b” wire – white insulation and black pair number printed on it,
  • insulated conductors twisted into pairs,
  • pair shield incorporating aluminium-polyester tape and stranded annealed tinned copper drain wire (class 2),
  • shielded pairs laid-up in layers,
  • cable core wrapped in polyester tape,
  • overall electrostatic shield incorporating aluminium-polyester tape and stranded annealed tinned copper drain wire (class 2),
  • oil, petrol and UV radiation resistant and self-extinguishing (oxygen index bigger than 29%) PVC cable sheath, blue RAL 5015 according to VDE 0165 6.1.3.2.3.
Conductor cross-section mm2 0,5 0,75 1,0 1,5 2,5
Maximum DC loop resistance at 20°C Ω/km 73,4 50 36,9 24,7 15,12
Capacitance between conductors at 1 kHz, appr. nF/km 250 280 310 310 380
Characteristics Descritpion
Operating voltage Uo/U 300/500 V
Voltage test 3,0 kV sk
Minimum insulation resistance 20 MΩ·km
Inductance, approximate 0,7 mH/km
Operating temperature range for fixed installation from - 30 to + 80°C
Operating temperature range for movable installation from - 5 to + 70°C
Minimum bending radius 10 x cable diameter
Cable combustibillity flame retardant
Combustibillity tests PN-EN 60332-1-2, IEC 60332-1-2
Oil resistance PN-EN 60811-404
Reference standards DT 28/01/04
CPR-class reaction on fire Eca
DoP declarations are available at www.technokabel.com.pl
The cable meets requirements of the low voltage direction 2014/35/UE

Available Upon Request

TECHNOKONTROL IB-YSL(St)Yv PIMF - intrinsically safe cables with enhanced PVC sheath, suitable for direct earth burial.
Item Index Item Name CPR Class Outer Diameter (approx.) mm Cable Weight (approx.) kg/km Cu Index
Item Index: 0792 045 20 Item Name: IB-YSL(St)Y PIMF 4x2x1,0 CPR Class: Eca Outer Diameter (approx.) mm: 11.7 Cable Weight (approx.) kg/km: 216 Cu Index: 90
Item Index: 0792 064 20 Item Name: IB-YSL(St)Y PIMF 24x2x0,75 CPR Class: Eca Outer Diameter (approx.) mm: 21.5 Cable Weight (approx.) kg/km: 721 Cu Index: 401.1
Item Index: 0792 067 20 Item Name: IB-YSL(St)Y PIMF 18x2x0,75 CPR Class: Eca Outer Diameter (approx.) mm: 19 Cable Weight (approx.) kg/km: 556 Cu Index: 302
Item Index: 0792 022 20 Item Name: IB-YSL(St)Y PIMF 8x2x0,75 CPR Class: Eca Outer Diameter (approx.) mm: 13.6 Cable Weight (approx.) kg/km: 289 Cu Index: 136.9
Item Index: 0792 023 20 Item Name: IB-YSL(St)Y PIMF 5x2x1,0 CPR Class: Eca Outer Diameter (approx.) mm: 12.7 Cable Weight (approx.) kg/km: 250 Cu Index: 111.4
Item Index: 0792 024 20 Item Name: IB-YSL(St)Y PIMF 8x2x0,5 CPR Class: Eca Outer Diameter (approx.) mm: 12.6 Cable Weight (approx.) kg/km: 236 Cu Index: 98.5
Item Index: 0792 026 20 Item Name: IB-YSL(St)Y PIMF 2x2x0,5 CPR Class: Outer Diameter (approx.) mm: 8.9 Cable Weight (approx.) kg/km: 109 Cu Index: 28.2
Item Index: 0792 027 20 Item Name: IB-YSL(St)Y PIMF 3x2x0,75 CPR Class: Eca Outer Diameter (approx.) mm: 10 Cable Weight (approx.) kg/km: 155 Cu Index: 54.3
Item Index: 0792 028 20 Item Name: IB-YSL(St)Y PIMF 7x2x0,75 CPR Class: Eca Outer Diameter (approx.) mm: 12.8 Cable Weight (approx.) kg/km: 262 Cu Index: 120.4
Item Index: 0792 029 20 Item Name: IB-YSL(St)Y PIMF 14x2x1,0 CPR Class: Eca Outer Diameter (approx.) mm: 18.5 Cable Weight (approx.) kg/km: 550 Cu Index: 303.2
Item Index: 0792 030 20 Item Name: IB-YSL(St)Y PiMF 3x2x1,0 CPR Class: Eca Outer Diameter (approx.) mm: 10.7 Cable Weight (approx.) kg/km: 182 Cu Index: 68.7
Item Index: 0792 031 20 Item Name: IB-YSL(St)Y PIMF 24x2x1,5 CPR Class: Eca Outer Diameter (approx.) mm: 26.3 Cable Weight (approx.) kg/km: 1170 Cu Index: 746.7
Item Index: 0792 032 20 Item Name: IB-YSL(St)Y PIMF 6x2x0,75 CPR Class: Eca Outer Diameter (approx.) mm: 12.8 Cable Weight (approx.) kg/km: 250 Cu Index: 103.9
Item Index: 0792 016 20 Item Name: IB-YSL(St)Y PIMF 4x2x1,5 CPR Class: Eca Outer Diameter (approx.) mm: 12.8 Cable Weight (approx.) kg/km: 270 Cu Index: 128.4
Item Index: 0792 017 20 Item Name: IB-YSL(St)Y PIMF 5x2x0,75 CPR Class: Eca Outer Diameter (approx.) mm: 11.9 Cable Weight (approx.) kg/km: 211 Cu Index: 87.4
Item Index: 0792 018 20 Item Name: IB-YSL(St)Y PIMF 2x2x1,5 CPR Class: Eca Outer Diameter (approx.) mm: 11.1 Cable Weight (approx.) kg/km: 177 Cu Index: 66.6
Item Index: 0792 019 20 Item Name: IB-YSL(St)Y PIMF 8x2x1,5 CPR Class: Eca Outer Diameter (approx.) mm: 16.2 Cable Weight (approx.) kg/km: 444 Cu Index: 252.1
Item Index: 0792 020 20 Item Name: IB-YSL(St)Y PIMF 6x2x1,0 CPR Class: Eca Outer Diameter (approx.) mm: 13.8 Cable Weight (approx.) kg/km: 298 Cu Index: 132.7
Item Index: 0792 021 20 Item Name: IB-YSL(St)Y PIMF 4x2x0,75 CPR Class: Eca Outer Diameter (approx.) mm: 10.9 Cable Weight (approx.) kg/km: 182 Cu Index: 70.8
Item Index: 0792 008 20 Item Name: IB-YSL(St)Y PIMF 20x2x1,5 CPR Class: Eca Outer Diameter (approx.) mm: 24.3 Cable Weight (approx.) kg/km: 996 Cu Index: 623
Item Index: 0792 009 20 Item Name: IB-YSL(St)Y PIMF 16x2x1,5 CPR Class: Eca Outer Diameter (approx.) mm: 21.7 Cable Weight (approx.) kg/km: 799 Cu Index: 499.4
Item Index: 0792 010 20 Item Name: IB-YSL(St)Y PIMF 12x2x0,5 CPR Class: Eca Outer Diameter (approx.) mm: 14.8 Cable Weight (approx.) kg/km: 323 Cu Index: 145.3
Item Index: 0792 011 20 Item Name: IB-YSL(St)Y PIMF 9x2x1,5 CPR Class: Eca Outer Diameter (approx.) mm: 17.4 Cable Weight (approx.) kg/km: 504 Cu Index: 283
Item Index: 0792 012 20 Item Name: IB-YSL(St)Y PIMF 24x2x1,0 CPR Class: Eca Outer Diameter (approx.) mm: 23.7 Cable Weight (approx.) kg/km: 903 Cu Index: 516.3
Item Index: 0792 013 20 Item Name: IB-YSL(St)Y PIMF 16x2x1,0 CPR Class: Eca Outer Diameter (approx.) mm: 19.6 Cable Weight (approx.) kg/km: 615 Cu Index: 345.8
Item Index: 0792 014 20 Item Name: IB-YSL(St)Y PIMF 12x2x1,0 CPR Class: Eca Outer Diameter (approx.) mm: 17.3 Cable Weight (approx.) kg/km: 483 Cu Index: 260.5
Item Index: 0792 015 20 Item Name: IB-YSL(St)Y PIMF 16x2x0,75 CPR Class: Eca Outer Diameter (approx.) mm: 18.1 Cable Weight (approx.) kg/km: 505 Cu Index: 269
Item Index: 0792 001 20 Item Name: IB-YSL(St)Y PIMF 2x2x1,0 CPR Class: Eca Outer Diameter (approx.) mm: 10.2 Cable Weight (approx.) kg/km: 143 Cu Index: 47.4
Item Index: 0792 002 20 Item Name: IB-YSL(St)Y PIMF 10x2x1,0 CPR Class: Eca Outer Diameter (approx.) mm: 16.6 Cable Weight (approx.) kg/km: 425 Cu Index: 217.9
Item Index: 0792 003 20 Item Name: IB-YSL(St)Y PIMF 10x2x0,5 CPR Class: Eca Outer Diameter (approx.) mm: 14.2 Cable Weight (approx.) kg/km: 287 Cu Index: 121.9
Item Index: 0792 004 20 Item Name: IB-YSL(St)Y PIMF 8x2x1,0 CPR Class: Eca Outer Diameter (approx.) mm: 14.7 Cable Weight (approx.) kg/km: 347 Cu Index: 175.3
Item Index: 0792 005 20 Item Name: IB-YSL(St)Y PIMF 12x2x0,75 CPR Class: Eca Outer Diameter (approx.) mm: 16.1 Cable Weight (approx.) kg/km: 400 Cu Index: 202.9
Item Index: 0792 006 20 Item Name: IB-YSL(St)Y PIMF 2x2x0,75 CPR Class: Eca Outer Diameter (approx.) mm: 9.5 Cable Weight (approx.) kg/km: 124 Cu Index: 37.8
Item Index: 0792 007 20 Item Name: IB-YSL(St)Y PIMF 12x2x1,5 CPR Class: Eca Outer Diameter (approx.) mm: 19.2 Cable Weight (approx.) kg/km: 626 Cu Index: 375.7
