Product Name
PKM kat.5 (2) 2x2x0,34
Performance Characteristics

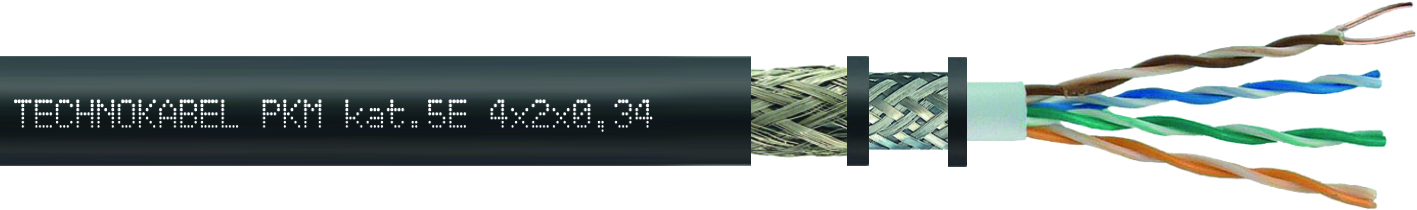

PKM kat.5e 4x2x0,34 mm2 are patch cables, applied in multimedia computer networks
(data, sound and HDTV transmission) including structural wiring of buildings,
in industrial and other dedicated networks sensitive to electromagnetic interferences.
The overall shield protects the cables against external electromagnetic interferences and prevents emission of interferences produced in the cables.
The special polyurethane used for the coating ensures that the cable can operate at low temperatures,
down to -40 °C, and is also resistant to cuts and abrasion.
The cables are also applied in computer networks of increased binary transfer where simultaneous
transmission in both directions in all 4 symmetrical circuits is used (full duplex, Gigabit Ethernet technique).
The cable’s design allows it to be mechanically unwound and wound without damage,
suspended from natural and artificial supports, and laid on the ground,
as well as traversing water obstacles when submerged in water to a depth of up to 10 meters.
Electrical properties at 20°C
| Characteristics | Descritpion |
|---|---|
| Characteristic impedance | 100 ± 5 Ω |
| Mutual capacitance of any pair at 1 kHz, approximate | 50 nF/km |
| Capacitance unbalance of any pair to ground at 1 kHz, maximum | 1600 pF/km |
| Minimum insulation resistance | 5000 MΩ∙km |
| Operating voltage | 150 V |
| Voltage test | 700 V sk |
| Velocity of propagation | 65% |
| Return loss, minimum at f=4¸ 10 MHz – min. | 25+5lg(f) dB |
| Return loss, minimum at f=10¸ 20 MHz – min. | 25 dB |
| Return loss, minimum at f=20¸ 155 MHz – min. | 25-8,6lg(f/20) dB |
| Minimum shielding attenuation at the frequency f=30¸ 100 MHz – min. | 40 dB |
| Shielding impedance at 10 MHz – maximum | 100 mΩ/m |
| Maximum DC loop resistance at 20°C | 120 Ω/km |
| Conductor resistance asymmetry of any pairs, maximum | 0,24 Ω/150m |
| Phase delay dispersion of symmetrical circuits | 45 ns/100 m |
| Phase delay T | 534+36/√f ns/100 m |
| Operating temperature range | from – 40°C to + 80°C |
| Minimum bending radius | 10 x cable diameter |
| Maximum pulling force | 1,2 kN |
| Breaking force – min | 2,5 kN |
| Reference standards | PN-EN 50288-2-2, IEC 61156-6 ISO/IEC 11801, TIA/EIA 568 A |
| The cable meets requirements of the low voltage direction | 2014/35/UE |
| Item Index | Item Name | CPR Class | Outer Diameter (approx.) mm | Cable Weight (approx.) kg/km | Cu Index |
|---|---|---|---|---|---|
| Item Index: 0199 014 05 | Item Name: PKM kat.5 (2) 2x2x0,34 | CPR Class: | Outer Diameter (approx.) mm: 9 | Cable Weight (approx.) kg/km: 101 | Cu Index: 39.7 |
