Product Name

TLgYp OFC 2×4

Performance Characteristics

PN-EN50575
PN-EN50575
Indoor application
Indoor application
Flame retardant PN-EN 60332-1-2
Flame retardant PN-EN 60332-1-2
TLgYp OFC 2×4
Application Construction Technical Data Special Designs Downloads

Application

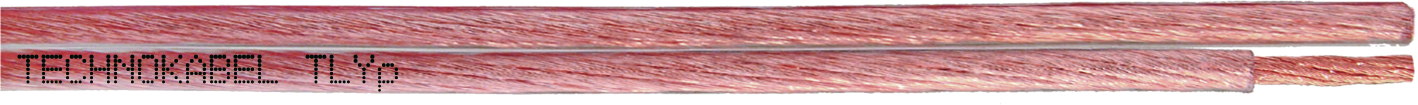

Loudspeaker cables TLYp and TLgYp (high flexible) are intended for connection between amplifiers and loudspeakers. The cables are flat with common PVC insulation (eight shape) on two parallel conductors. The cables are designed to offer high acoustic parameters confirmed by testing in Electroacoustic Division, Institute of Radioelectronics Warsaw University of Technology. The cables are suitable for indoor installations connecting fixed and movable equipment.

Structure

  • flexible, multiwire conductors, stranded of bare annealed copper wires,
  • PVC insulation,
  • colours:
  • black with white stripe or white with black stripe (cross-sections 0.35 and 0.5 mm2),
  • transparent with black or red stripe (other cross-sections), other colours also available.
TLYp wires
Conductor cross-section mm2 0,35 0,5 0,75 1,0 1,5
DC conductor resistance at 20°C maximum Ω/km 55,4 39 26 19,5 13,3
average 54,6 37,4 24,8 18,8 12,3
Inductance, approximate mH/km 422 203 96 51 30
TLgYp wires
Conductor cross-section mm2 1,5 2,5 4 6 10
DC conductor resistance at 20°C maximum Ω/km 13,3 7,98 4,95 3,3 1,91
average 12,5 7,5 4,7 3 1,8
Inductance, approximate mH/km 30 9 4 2 1,5
Characteristics Descritpion
Minimum insulation resistance 200 MΩ ×km
Operating voltage 300 V
Voltage test 1500 V sk
Operating temperature range for fixed installation from - 30 to + 80°C
Operating temperature range for movable installation from - 5 to + 50°C
Minimum bending radius 5 x cable height
Cable combustibillity flame retardant
Combustibillity tests PN-EN 60332-1-2, IEC 60332-1-2
Reference standards WT-00/TK-1
CPR-class reaction on fire Eca
DoP declarations are available at technokabel.com.pl
The cable meets requirements of the low voltage direction 2014/35/UE

Available Upon Request

TLYp OFC and TLgYp OFC - cables with conductors made of oxygen-free copper (OFC). TLHp and TLgHp - halogen free cables, applied when higher safety in case of fire is required. The cables are flame retardant, their smoke emission in fire is low and released gases are not corrosive.
Item Index Item Name CPR Class Outer Diameter (approx.) mm Cable Weight (approx.) kg/km Cu Index
Item Index: 0246 012 47 Item Name: TLYp 2×4 CPR Class: Eca Outer Diameter (approx.) mm: 4.6 Cable Weight (approx.) kg/km: 104.3 Cu Index: 78.34
Item Index: 0246 031 47 Item Name: TLYp 2×0,22 CPR Class: Outer Diameter (approx.) mm: 1.3 Cable Weight (approx.) kg/km: 6.3 Cu Index: 4.2
Item Index: 0247 001 53 Item Name: TLYp OFC 2×0,35 CPR Class: Eca Outer Diameter (approx.) mm: 1.6 Cable Weight (approx.) kg/km: 10 Cu Index: 7.06
Item Index: 0247 002 47 Item Name: TLYp OFC 2×0,35 CPR Class: Eca Outer Diameter (approx.) mm: 1.6 Cable Weight (approx.) kg/km: 11 Cu Index: 6.7
Item Index: 0247 002 53 Item Name: TLYp OFC 2×0,35 CPR Class: Eca Outer Diameter (approx.) mm: 1.6 Cable Weight (approx.) kg/km: 11 Cu Index: 6.7
Item Index: 0247 003 47 Item Name: TLYp OFC 2×0,75 CPR Class: Eca Outer Diameter (approx.) mm: 2.2 Cable Weight (approx.) kg/km: 22 Cu Index: 14.4
Item Index: 0247 003 53 Item Name: TLYp OFC 2×0,75 CPR Class: Eca Outer Diameter (approx.) mm: 2.2 Cable Weight (approx.) kg/km: 22 Cu Index: 14.4
Item Index: 0247 004 47 Item Name: TLYp OFC 2×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 2.5 Cable Weight (approx.) kg/km: 29 Cu Index: 19.2
Item Index: 0247 004 53 Item Name: TLYp OFC 2×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 2.5 Cable Weight (approx.) kg/km: 29 Cu Index: 19.2
Item Index: 0246 009 88 Item Name: TLYp 2×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 2.5 Cable Weight (approx.) kg/km: 28.5 Cu Index: 19.9
Item Index: 0246 010 47 Item Name: TLYp 2×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 2.8 Cable Weight (approx.) kg/km: 38.7 Cu Index: 28.8
Item Index: 0246 010 88 Item Name: TLYp 2×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 2.8 Cable Weight (approx.) kg/km: 38.7 Cu Index: 28.8
Item Index: 0246 007 50 Item Name: TLYp 2×0,75 CPR Class: Eca Outer Diameter (approx.) mm: 2.1 Cable Weight (approx.) kg/km: 20.5 Cu Index: 14.4
Item Index: 0246 007 88 Item Name: TLYp 2×0,75 CPR Class: Eca Outer Diameter (approx.) mm: 2.1 Cable Weight (approx.) kg/km: 20.5 Cu Index: 14.4
Item Index: 0246 009 47 Item Name: TLYp 2×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 2.5 Cable Weight (approx.) kg/km: 28.5 Cu Index: 19.9
Item Index: 0246 009 50 Item Name: TLYp 2×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 2.5 Cable Weight (approx.) kg/km: 28.5 Cu Index: 19.9
Item Index: 0246 003 47 Item Name: TLYp 2×0,35 CPR Class: Eca Outer Diameter (approx.) mm: 1.6 Cable Weight (approx.) kg/km: 11 Cu Index: 6.7
Item Index: 0246 003 50 Item Name: TLYp 2×0,35 CPR Class: Eca Outer Diameter (approx.) mm: 1.6 Cable Weight (approx.) kg/km: 11 Cu Index: 6.7
Item Index: 0246 003 88 Item Name: TLYp 2×0,35 CPR Class: Eca Outer Diameter (approx.) mm: 1.6 Cable Weight (approx.) kg/km: 11 Cu Index: 6.7
Item Index: 0246 006 47 Item Name: TLYp 2×0,5 CPR Class: Eca Outer Diameter (approx.) mm: 2.2 Cable Weight (approx.) kg/km: 18 Cu Index: 9.95
Item Index: 0246 006 50 Item Name: TLYp 2×0,5 CPR Class: Eca Outer Diameter (approx.) mm: 2.2 Cable Weight (approx.) kg/km: 18 Cu Index: 9.95
Item Index: 0246 006 88 Item Name: TLYp 2×0,5 CPR Class: Eca Outer Diameter (approx.) mm: 2.2 Cable Weight (approx.) kg/km: 18 Cu Index: 9.95
Item Index: 0246 007 47 Item Name: TLYp 2×0,75 CPR Class: Eca Outer Diameter (approx.) mm: 2.1 Cable Weight (approx.) kg/km: 20.5 Cu Index: 14.4
Item Index: 0238 006 53 Item Name: TLgYp OFC (L1) 2×4 CPR Class: Eca Outer Diameter (approx.) mm: 4.1 Cable Weight (approx.) kg/km: 87 Cu Index: 77
Item Index: 0238 007 53 Item Name: TLgYp OFC (L1) 2×6 CPR Class: Eca Outer Diameter (approx.) mm: 5.1 Cable Weight (approx.) kg/km: 130 Cu Index: 115
Item Index: 0237 012 88 Item Name: TLgYp 2×6 CPR Class: Eca Outer Diameter (approx.) mm: 5.8 Cable Weight (approx.) kg/km: 160.1 Cu Index: 124.78
Item Index: 0237 015 47 Item Name: TLgYp 2×10 CPR Class: Eca Outer Diameter (approx.) mm: 6.8 Cable Weight (approx.) kg/km: 249.39 Cu Index: 209.19
Item Index: 0238 001 47 Item Name: TLgYp OFC 2×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 2.8 Cable Weight (approx.) kg/km: 38 Cu Index: 30.58
Item Index: 0238 001 53 Item Name: TLgYp OFC 2×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 2.8 Cable Weight (approx.) kg/km: 38 Cu Index: 30.58
Item Index: 0238 002 47 Item Name: TLgYp OFC 2×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 3.7 Cable Weight (approx.) kg/km: 62 Cu Index: 50.37
Item Index: 0238 002 53 Item Name: TLgYp OFC 2×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 3.7 Cable Weight (approx.) kg/km: 62 Cu Index: 50.37
Item Index: 0238 003 47 Item Name: TLgYp OFC 2×4 CPR Class: Eca Outer Diameter (approx.) mm: 4.6 Cable Weight (approx.) kg/km: 103 Cu Index: 77
Item Index: 0238 003 53 Item Name: TLgYp OFC 2×4 CPR Class: Eca Outer Diameter (approx.) mm: 4.6 Cable Weight (approx.) kg/km: 103 Cu Index: 77
Item Index: 0238 004 47 Item Name: TLgYp OFC 2×6 CPR Class: Eca Outer Diameter (approx.) mm: 5.8 Cable Weight (approx.) kg/km: 161 Cu Index: 115
Item Index: 0238 004 53 Item Name: TLgYp OFC 2×6 CPR Class: Eca Outer Diameter (approx.) mm: 5.8 Cable Weight (approx.) kg/km: 161 Cu Index: 115
Item Index: 0238 005 47 Item Name: TLgYp OFC 2×10 CPR Class: Eca Outer Diameter (approx.) mm: 6.8 Cable Weight (approx.) kg/km: 249.4 Cu Index: 201
Item Index: 0238 005 53 Item Name: TLgYp OFC 2×10 CPR Class: Eca Outer Diameter (approx.) mm: 6.8 Cable Weight (approx.) kg/km: 249.4 Cu Index: 201
Item Index: 0237 004 47 Item Name: TLgYp 2×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 2.8 Cable Weight (approx.) kg/km: 38 Cu Index: 30.58
Item Index: 0237 004 50 Item Name: TLgYp 2×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 2.8 Cable Weight (approx.) kg/km: 38 Cu Index: 30.58
Item Index: 0237 004 88 Item Name: TLgYp 2×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 2.8 Cable Weight (approx.) kg/km: 38 Cu Index: 30.58
Item Index: 0237 007 47 Item Name: TLgYp 2×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 3.7 Cable Weight (approx.) kg/km: 65 Cu Index: 48
Item Index: 0237 007 50 Item Name: TLgYp 2×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 3.7 Cable Weight (approx.) kg/km: 65 Cu Index: 48
Item Index: 0237 007 88 Item Name: TLgYp 2×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 3.7 Cable Weight (approx.) kg/km: 65 Cu Index: 48
Item Index: 0237 009 47 Item Name: TLgYp 2×4 CPR Class: Eca Outer Diameter (approx.) mm: 4.6 Cable Weight (approx.) kg/km: 102.5 Cu Index: 77
Item Index: 0237 009 50 Item Name: TLgYp 2×4 CPR Class: Eca Outer Diameter (approx.) mm: 4.6 Cable Weight (approx.) kg/km: 102.5 Cu Index: 77
Item Index: 0237 012 47 Item Name: TLgYp 2×6 CPR Class: Eca Outer Diameter (approx.) mm: 5.8 Cable Weight (approx.) kg/km: 160.1 Cu Index: 124.78
