Product Name

TLWY 6×0,35

Performance Characteristics

PN-EN50575
PN-EN50575
Indoor application
Indoor application
Flame retardant PN-EN 60332-1-2
Flame retardant PN-EN 60332-1-2
TLWY 6×0,35
Application Construction Technical Data Downloads

Application

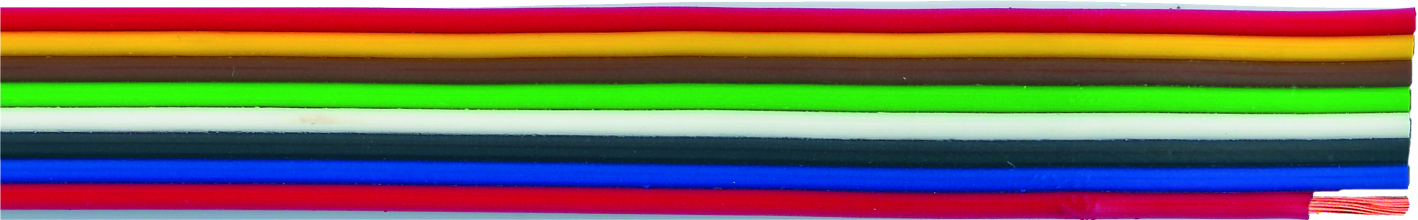

TLWY are ribbon cables designed for control cabinets, electronic devices and others as interconnection cables for electronic modules, equipment and instruments. Cables are designed to allow easy separation of any number of wires.

Structure

  • flexible, multiwire conductors, stranded of bare annealed copper wires (tin-plated on request), meeting requirements of class 5 per PN-EN 60228,
  • PVC insulation - colours of insulation and their sequence according to the following table, other combinations of colours are available on request:
No. wires Colour of insulation
1 8 15 22 red
2 9 16 23 blue
3 10 17 24 black
4 11 18 25 white
5 12 19 26 green
6 13 20 27 brown
7 14 21 28 yellow

  • insulated conductors arranged parallel to each other and glued together.
Conductor cross-section mm2 0,124 0,14 0,22 0,35 0,5 0,75 1,0 1,5
Operating voltage, peak value V 150 150 150 150 300 300 300 300
Voltage test V sk 500 500 1000 1500 1500 1500 2000 2000
Minimum insulation resistance MΩ·km 50 200 200 200 200 200 200 200
Maximum DC conductor resistance at 20°C Ω/km 155 144 89,3 57,2 38,8 25,8 19,1 13,3
Characteristics Descritpion
Operating temperature range for fixed installation from - 30 to + 80°C
Operating temperature range for movable installation from - 5 to + 50°C
Minimum bending radius 10 x cable diameter
Cable combustibillity flame retardant
Combustibillity tests PN-EN 60332-1-2, PN-EN 60332-2-2, IEC 60332-1-2
Reference standards PN-91/T-90211
CPR-class reaction on fire Eca
DoP declarations are available at technokabel.com.pl
The cable meets requirements of the low voltage direction 2014/35/UE
Item Index Item Name CPR Class Outer Diameter (approx.) mm Cable Weight (approx.) kg/km Cu Index
Item Index: 0240 054 60 Item Name: TLWY 20×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 52.7 Cu Index: 28.78
Item Index: 0240 056 78 Item Name: TLWY 3×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 13.9 Cu Index: 10.1
Item Index: 0240 057 60 Item Name: TLWY 4×1,5 CPR Class: Outer Diameter (approx.) mm: 2.6 Cable Weight (approx.) kg/km: 73.48 Cu Index: 58.85
Item Index: 0240 048 60 Item Name: TLWY 8×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 21.1 Cu Index: 16.45
Item Index: 0240 060 05 Item Name: TLWY 16×0,22 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 61 Cu Index: 33.8
Item Index: 0240 048 L6 Item Name: TLWY 8×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 21.1 Cu Index: 16.45
Item Index: 0240 069 L8 Item Name: TLWY 3×0,25 CPR Class: Outer Diameter (approx.) mm: 1.3 Cable Weight (approx.) kg/km: 11.3 Cu Index: 7.2
Item Index: 0240 049 60 Item Name: TLWY 9×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 23.7 Cu Index: 18.48
Item Index: 0240 050 05 Item Name: TLWY 10×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 26.5 Cu Index: 20.56
Item Index: 0240 050 10 Item Name: TLWY 10×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 26.5 Cu Index: 20.56
Item Index: 0240 050 60 Item Name: TLWY 10×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 26.5 Cu Index: 20.56
Item Index: 0240 050 J1 Item Name: TLWY 10×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 26.5 Cu Index: 20.56
Item Index: 0240 051 60 Item Name: TLWY 11×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 29 Cu Index: 22.58
Item Index: 0240 053 60 Item Name: TLWY 12×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 34 Cu Index: 25.12
Item Index: 0240 053 61 Item Name: TLWY 12×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 34 Cu Index: 25.12
Item Index: 0240 053 65 Item Name: TLWY 12×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 34 Cu Index: 25.12
Item Index: 0240 053 77 Item Name: TLWY 12×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 34 Cu Index: 25.12
Item Index: 0240 053 81 Item Name: TLWY 12×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 34 Cu Index: 25.12
Item Index: 0240 046 60 Item Name: TLWY 6×0,22 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 15.8 Cu Index: 12.7
Item Index: 0240 046 61 Item Name: TLWY 6×0,22 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 15.8 Cu Index: 12.7
Item Index: 0240 046 62 Item Name: TLWY 6×0,22 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 15.8 Cu Index: 12.7
Item Index: 0240 046 70 Item Name: TLWY 6×0,22 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 15.8 Cu Index: 12.7
Item Index: 0240 046 73 Item Name: TLWY 6×0,22 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 15.8 Cu Index: 12.7
Item Index: 0240 046 79 Item Name: TLWY 6×0,22 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 15.8 Cu Index: 12.7
Item Index: 0240 046 89 Item Name: TLWY 6×0,22 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 15.8 Cu Index: 12.7
Item Index: 0240 046 I1 Item Name: TLWY 6×0,22 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 15.8 Cu Index: 12.7
Item Index: 0240 046 J1 Item Name: TLWY 6×0,22 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 15.8 Cu Index: 12.7
Item Index: 0240 047 60 Item Name: TLWY 7×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 18.5 Cu Index: 14.39
Item Index: 0240 043 05 Item Name: TLWY 4×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 10.6 Cu Index: 8.22
Item Index: 0240 046 05 Item Name: TLWY 6×0,22 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 15.8 Cu Index: 12.7
Item Index: 0240 043 60 Item Name: TLWY 4×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 10.6 Cu Index: 8.22
Item Index: 0240 043 61 Item Name: TLWY 4×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 10.6 Cu Index: 8.22
Item Index: 0240 043 62 Item Name: TLWY 4×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 10.6 Cu Index: 8.22
Item Index: 0240 043 87 Item Name: TLWY 4×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 10.6 Cu Index: 8.22
Item Index: 0240 043 89 Item Name: TLWY 4×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 10.6 Cu Index: 8.22
Item Index: 0240 043 H6 Item Name: TLWY 4×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 10.6 Cu Index: 8.22
Item Index: 0240 043 I2 Item Name: TLWY 4×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 10.6 Cu Index: 8.22
Item Index: 0240 043 J1 Item Name: TLWY 4×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 10.6 Cu Index: 8.22
Item Index: 0240 043 L7 Item Name: TLWY 4×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 10.6 Cu Index: 8.22
Item Index: 0240 043 N3 Item Name: TLWY 4×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 10.6 Cu Index: 8.22
Item Index: 0240 044 60 Item Name: TLWY 5×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 14.3 Cu Index: 10.28
Item Index: 0240 044 70 Item Name: TLWY 5×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 14.3 Cu Index: 10.28
Item Index: 0240 044 74 Item Name: TLWY 5×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 14.3 Cu Index: 10.28
Item Index: 0240 044 80 Item Name: TLWY 5×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 14.3 Cu Index: 10.28
Item Index: 0240 043 01 Item Name: TLWY 4×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 10.6 Cu Index: 8.22
Item Index: 0240 044 89 Item Name: TLWY 5×0,22 CPR Class: Outer Diameter (approx.) mm: 1.05 Cable Weight (approx.) kg/km: 14.3 Cu Index: 10.28
Item Index: 0240 041 62 Item Name: TLWY 12×0,124 CPR Class: Outer Diameter (approx.) mm: 0.8 Cable Weight (approx.) kg/km: 20.5 Cu Index: 14.55
Item Index: 0240 032 61 Item Name: TLWY 6×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 9.9 Cu Index: 7.27
Item Index: 0240 041 77 Item Name: TLWY 12×0,124 CPR Class: Outer Diameter (approx.) mm: 0.8 Cable Weight (approx.) kg/km: 20.5 Cu Index: 14.55
Item Index: 0240 032 62 Item Name: TLWY 6×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 9.9 Cu Index: 7.27
Item Index: 0240 041 81 Item Name: TLWY 12×0,124 CPR Class: Outer Diameter (approx.) mm: 0.8 Cable Weight (approx.) kg/km: 20.5 Cu Index: 14.55
Item Index: 0240 032 63 Item Name: TLWY 6×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 9.9 Cu Index: 7.27
Item Index: 0240 041 J3 Item Name: TLWY 12×0,124 CPR Class: Outer Diameter (approx.) mm: 0.8 Cable Weight (approx.) kg/km: 20.5 Cu Index: 14.55
Item Index: 0240 032 64 Item Name: TLWY 6×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 9.9 Cu Index: 7.27
Item Index: 0240 032 70 Item Name: TLWY 6×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 9.9 Cu Index: 7.27
Item Index: 0240 032 89 Item Name: TLWY 6×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 9.9 Cu Index: 7.27
Item Index: 0240 032 91 Item Name: TLWY 6×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 9.9 Cu Index: 7.27
Item Index: 0240 033 60 Item Name: TLWY 7×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 14.5 Cu Index: 8.48
Item Index: 0240 036 60 Item Name: TLWY 8×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 13.2 Cu Index: 9.71
Item Index: 0240 037 60 Item Name: TLWY 9×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 14.8 Cu Index: 10.9
Item Index: 0240 039 60 Item Name: TLWY 10×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 21.5 Cu Index: 11.9
Item Index: 0240 040 60 Item Name: TLWY 11×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 18.5 Cu Index: 13.34
Item Index: 0240 041 05 Item Name: TLWY 12×0,124 CPR Class: Outer Diameter (approx.) mm: 0.8 Cable Weight (approx.) kg/km: 20.5 Cu Index: 14.55
Item Index: 0240 041 60 Item Name: TLWY 12×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 20.5 Cu Index: 14.55
Item Index: 0240 041 61 Item Name: TLWY 12×0,124 CPR Class: Outer Diameter (approx.) mm: 0.8 Cable Weight (approx.) kg/km: 20.5 Cu Index: 14.55
Item Index: 0240 029 60 Item Name: TLWY 4×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 6.6 Cu Index: 4.84
Item Index: 0240 029 61 Item Name: TLWY 4×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 6.6 Cu Index: 4.84
Item Index: 0240 029 H6 Item Name: TLWY 4×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 6.6 Cu Index: 4.84
Item Index: 0240 029 N1 Item Name: TLWY 4×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 6.6 Cu Index: 4.84
Item Index: 0240 029 N2 Item Name: TLWY 4×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 6.6 Cu Index: 4.84
Item Index: 0240 029 N4 Item Name: TLWY 4×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 6.6 Cu Index: 4.84
Item Index: 0240 030 60 Item Name: TLWY 5×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 10.5 Cu Index: 6
Item Index: 0240 032 60 Item Name: TLWY 6×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 9.9 Cu Index: 7.27
Item Index: 0240 016 61 Item Name: TLWY 4×0,5 CPR Class: Outer Diameter (approx.) mm: 1.94 Cable Weight (approx.) kg/km: 32.3 Cu Index: 20.28
Item Index: 0240 017 60 Item Name: TLWY 6×0,5 CPR Class: Outer Diameter (approx.) mm: 1.9 Cable Weight (approx.) kg/km: 47.41 Cu Index: 28.5
Item Index: 0240 018 01 Item Name: TLWY 8×0,5 CPR Class: Outer Diameter (approx.) mm: 1.94 Cable Weight (approx.) kg/km: 63.3 Cu Index: 40.18
Item Index: 0240 018 60 Item Name: TLWY 8×0,5 CPR Class: Outer Diameter (approx.) mm: 1.94 Cable Weight (approx.) kg/km: 63.3 Cu Index: 40.18
Item Index: 0240 019 60 Item Name: TLWY 10×0,5 CPR Class: Outer Diameter (approx.) mm: 1.94 Cable Weight (approx.) kg/km: 80 Cu Index: 48
Item Index: 0240 020 60 Item Name: TLWY 12×0,5 CPR Class: Outer Diameter (approx.) mm: 1.94 Cable Weight (approx.) kg/km: 95.5 Cu Index: 60.27
Item Index: 0240 021 60 Item Name: TLWY 4×0,75 CPR Class: Outer Diameter (approx.) mm: 2.2 Cable Weight (approx.) kg/km: 43.4 Cu Index: 28.5
Item Index: 0240 022 60 Item Name: TLWY 6×0,75 CPR Class: Outer Diameter (approx.) mm: 2.2 Cable Weight (approx.) kg/km: 66 Cu Index: 43.2
Item Index: 0240 023 60 Item Name: TLWY 8×0,75 CPR Class: Outer Diameter (approx.) mm: 2.2 Cable Weight (approx.) kg/km: 86.8 Cu Index: 58
Item Index: 0240 024 60 Item Name: TLWY 12×0,75 CPR Class: Outer Diameter (approx.) mm: 2.08 Cable Weight (approx.) kg/km: 116 Cu Index: 86
Item Index: 0240 025 60 Item Name: TLWY 4×1,0 CPR Class: Outer Diameter (approx.) mm: 2.3 Cable Weight (approx.) kg/km: 53.62 Cu Index: 38.5
Item Index: 0240 026 60 Item Name: TLWY 12×1,0 CPR Class: Outer Diameter (approx.) mm: 2.3 Cable Weight (approx.) kg/km: 161 Cu Index: 115
Item Index: 0240 015 60 Item Name: TLWY 3×0,5 CPR Class: Outer Diameter (approx.) mm: 1.9 Cable Weight (approx.) kg/km: 24 Cu Index: 14.4
Item Index: 0240 029 05 Item Name: TLWY 4×0,124 CPR Class: Outer Diameter (approx.) mm: 1 Cable Weight (approx.) kg/km: 6.6 Cu Index: 4.84
Item Index: 0240 015 A1 Item Name: TLWY 3×0,5 CPR Class: Outer Diameter (approx.) mm: 1.9 Cable Weight (approx.) kg/km: 24 Cu Index: 14.4
Item Index: 0240 016 01 Item Name: TLWY 4×0,5 CPR Class: Outer Diameter (approx.) mm: 1.94 Cable Weight (approx.) kg/km: 32.3 Cu Index: 20.28
Item Index: 0240 016 60 Item Name: TLWY 4×0,5 CPR Class: Outer Diameter (approx.) mm: 1.94 Cable Weight (approx.) kg/km: 32.3 Cu Index: 20.28
Item Index: 0240 007 66 Item Name: TLWY 6×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 27.7 Cu Index: 20.2
Item Index: 0240 013 L1 Item Name: TLWY 12×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 57 Cu Index: 40.3
Item Index: 0240 007 70 Item Name: TLWY 6×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 27.7 Cu Index: 20.2
Item Index: 0240 013 L3 Item Name: TLWY 12×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 57 Cu Index: 40.3
Item Index: 0240 007 74 Item Name: TLWY 6×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 27.7 Cu Index: 20.2
Item Index: 0240 014 60 Item Name: TLWY 20×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 95.18 Cu Index: 68
Item Index: 0240 007 78 Item Name: TLWY 6×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 27.7 Cu Index: 20.2
Item Index: 0240 007 89 Item Name: TLWY 6×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 27.7 Cu Index: 20.2
Item Index: 0240 007 I9 Item Name: TLWY 6×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 27.7 Cu Index: 20.2
Item Index: 0240 007 J6 Item Name: TLWY 6×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 27.7 Cu Index: 20.2
Item Index: 0240 008 60 Item Name: TLWY 7×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 32.5 Cu Index: 24.13
Item Index: 0240 009 60 Item Name: TLWY 8×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 37.5 Cu Index: 27.58
Item Index: 0240 010 60 Item Name: TLWY 9×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 41.6 Cu Index: 28.85
Item Index: 0240 011 60 Item Name: TLWY 10×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 46.5 Cu Index: 34.48
Item Index: 0240 011 67 Item Name: TLWY 10×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 46.5 Cu Index: 34.48
Item Index: 0240 011 M6 Item Name: TLWY 10×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 46.5 Cu Index: 34.48
Item Index: 0240 007 60 Item Name: TLWY 6×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 27.7 Cu Index: 20.2
Item Index: 0240 012 60 Item Name: TLWY 11×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 51 Cu Index: 37.92
Item Index: 0240 007 61 Item Name: TLWY 6×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 27.7 Cu Index: 20.2
Item Index: 0240 013 60 Item Name: TLWY 12×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 57 Cu Index: 40.3
Item Index: 0240 007 62 Item Name: TLWY 6×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 27.7 Cu Index: 20.2
Item Index: 0240 013 97 Item Name: TLWY 12×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 57 Cu Index: 40.3
Item Index: 0240 005 85 Item Name: TLWY 4×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 19.2 Cu Index: 13.73
Item Index: 0240 005 87 Item Name: TLWY 4×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 19.2 Cu Index: 13.73
Item Index: 0240 005 I4 Item Name: TLWY 4×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 19.2 Cu Index: 13.73
Item Index: 0240 005 J2 Item Name: TLWY 4×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 19.2 Cu Index: 13.73
Item Index: 0240 006 01 Item Name: TLWY 5×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 23.1 Cu Index: 17.24
Item Index: 0240 006 60 Item Name: TLWY 5×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 23.1 Cu Index: 17.24
Item Index: 0240 006 74 Item Name: TLWY 5×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 23.1 Cu Index: 17.24
Item Index: 0240 006 89 Item Name: TLWY 5×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 23.1 Cu Index: 17.24
Item Index: 0240 007 07 Item Name: TLWY 6×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 27.7 Cu Index: 20.2
Item Index: 0240 005 84 Item Name: TLWY 4×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 19.2 Cu Index: 13.73
Item Index: 0240 005 01 Item Name: TLWY 4×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 19.2 Cu Index: 13.73
Item Index: 0240 005 60 Item Name: TLWY 4×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 19.2 Cu Index: 13.73
Item Index: 0240 005 61 Item Name: TLWY 4×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 19.2 Cu Index: 13.73
Item Index: 0240 005 62 Item Name: TLWY 4×0,35 CPR Class: Outer Diameter (approx.) mm: 1.4 Cable Weight (approx.) kg/km: 19.2 Cu Index: 13.73
