Product Name

YKSY 0,6/1 kV 19×1,0

Performance Characteristics

PN-EN50575
PN-EN50575
Indoor application
Indoor application
Outdoor application
Outdoor application
Direct burial
Direct burial
Flame retardant PN-EN 60332-1-2
Flame retardant PN-EN 60332-1-2
UV resistance
UV resistance

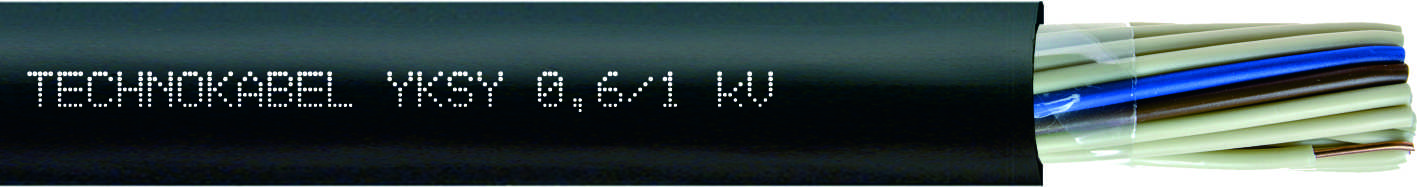

YKSY 0,6/1 kV 19×1,0
Application Construction Technical Data Special Designs Downloads

Application

YKSYżo 0,6/1 kV and YKSY 0,6/1 kV control cables are designed for control, protection and monitoring systems in power engineering, also for electric power distribution. The cables are suitable for industrial applications, such as production plants or air-conditioning systems operating in dry and wet locations, also for outdoor installations, in cable ducts or for direct earth burial.

Structure


  • bare annealed copper conductors meeting requirements of class 1 per PN-EN 60228 standard,
  • PVC insulation, colour code insulation in each layer:
brown conductor as a counter, blue directional conductor and other conductors of any colour with the exception of green, yellow, brown and blue, YKSYżo 0,6/1 kV green-yellow protective conductor is positioned as a counter conductor in the outer layer instead of conductor of brown,
  • insulated conductors laid-up in a cable core,
  • cable core wrapped in polyester tape,
  • black PVC cable sheath, other colours also available.
Conductor cross-section mm2 1,0 1,5 2,5 4 6 10 16
Maximum DC conductor resistance at 20°C Ω/km 18,1 12,1 7,41 4,61 3,08 1,83 1,15
Characteristics Descritpion
Operating voltage Uo/U 0,6/1 kV
Voltage test 4 kV sk
Minimum insulation resistance 20 MΩ·km
Conductor temperature limit in work conditions + 70°C
Conductor temperature limit at short-circuit + 160°C
Operating temperature range during operation from - 30 to + 70°C
Operating temperature range during installation from - 5 to + 50°C
Minimum bending radius 12 x cable diameter
Cable combustibillity flame retardant
Combustibillity tests PN-EN 60332-1-2, IEC 60332-1-2
Reference standards IEC 60502-1, PN-93/E-90403, PN-HD 603 S1
CPR-class reaction on fire Eca
DoP declarations are available at technokabel.com.pl
The cable meets requirements of the low voltage direction 2014/35/UE

Available Upon Request

YKSYżo-O 0,6/1 kV and YKSY-O 0,6/1 kV - cables designed for frequent contact with petroleum products, as in petrol stations and stores, where engine fuels and lubricants are pumped or handled. The cable sheath is then made of special PVC compound meeting oil resistance requirements of Polish standard PN-EN 60811-404. YnKSYżo 0,6/1 kV and YnKSY 0,6/1 kV - cables of reduced combustibility, sheathed with special self-extinguishing PVC of high oxygen index and pass combustibility test according to PN-EN 60332-3 standard. YKSwYżo 0,6/1 kV and YKSwY 0,6/1 kV - cables with inner covering extruded directly on a cable core, recommended for direct earth burial. XnKSXSżo 0,6/1 kV and XnKSXS 0,6/1 kV - halogen free cables, applied when higher safety in case of fire is required. The cables are flame retardant, their smoke emission in fire is low and released gases are not corrosive. Steel wire or steel tape armoured cables as above applied in locations where enhanced protection against mechanical damages is required.
Item Index Item Name CPR Class Outer Diameter (approx.) mm Cable Weight (approx.) kg/km Cu Index
Item Index: 0353 034 05 Item Name: YKSYżo 0,6/1 kV 16×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 14.5 Cable Weight (approx.) kg/km: 340 Cu Index: 153.6
Item Index: 0353 035 05 Item Name: YKSYżo 0,6/1 kV 21×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 16.7 Cable Weight (approx.) kg/km: 454 Cu Index: 201.6
Item Index: 0353 036 05 Item Name: YKSYżo 0,6/1 kV 12×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 15.8 Cable Weight (approx.) kg/km: 465 Cu Index: 288
Item Index: 0353 037 05 Item Name: YKSYżo 0,6/1 kV 12×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 14.2 Cable Weight (approx.) kg/km: 338 Cu Index: 172.8
Item Index: 0353 038 05 Item Name: YKSYżo 0,6/1 kV 16×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 15.7 Cable Weight (approx.) kg/km: 432 Cu Index: 230.4
Item Index: 0353 039 05 Item Name: YKSYżo 0,6/1 kV 75×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 30.8 Cable Weight (approx.) kg/km: 1731 Cu Index: 1080
Item Index: 0353 040 05 Item Name: YKSYżo 0,6/1 kV 21×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 18.1 Cable Weight (approx.) kg/km: 578 Cu Index: 302.4
Item Index: 0353 041 05 Item Name: YKSYżo 0,6/1 kV 16×4 CPR Class: Eca Outer Diameter (approx.) mm: 21.5 Cable Weight (approx.) kg/km: 920 Cu Index: 614.4
Item Index: 0353 042 05 Item Name: YKSYżo 0,6/1 kV 16×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 17.5 Cable Weight (approx.) kg/km: 600 Cu Index: 384
Item Index: 0353 043 05 Item Name: YKSYżo 0,6/1 kV 10×10 CPR Class: Eca Outer Diameter (approx.) mm: 24.2 Cable Weight (approx.) kg/km: 1241 Cu Index: 960
Item Index: 0353 044 05 Item Name: YKSYżo 0,6/1 kV 14×6 CPR Class: Eca Outer Diameter (approx.) mm: 22.8 Cable Weight (approx.) kg/km: 1102 Cu Index: 806.4
Item Index: 0353 045 05 Item Name: YKSYżo 0,6/1 kV 14×4 CPR Class: Eca Outer Diameter (approx.) mm: 20.4 Cable Weight (approx.) kg/km: 808 Cu Index: 537.6
Item Index: 0353 046 05 Item Name: YKSYżo 0,6/1 kV 61×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 27.5 Cable Weight (approx.) kg/km: 1416 Cu Index: 878.4
Item Index: 0353 047 05 Item Name: YKSYżo 0,6/1 kV 12×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 13.2 Cable Weight (approx.) kg/km: 268 Cu Index: 115.2
Item Index: 0353 032 05 Item Name: YKSYżo 0,6/1 kV 30×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 22.9 Cable Weight (approx.) kg/km: 1052 Cu Index: 720
Item Index: 0353 048 05 Item Name: YKSYżo 0,6/1 kV 27×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 19.6 Cable Weight (approx.) kg/km: 673 Cu Index: 388.8
Item Index: 0353 033 05 Item Name: YKSYżo 0,6/1 kV 37×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 20.1 Cable Weight (approx.) kg/km: 682 Cu Index: 355.2
Item Index: 0353 052 05 Item Name: YKSYżo 0,6/1 kV 7×16 CPR Class: Eca Outer Diameter (approx.) mm: 21.5 Cable Weight (approx.) kg/km: 1270 Cu Index: 1075.2
Item Index: 0353 012 05 Item Name: YKSYżo 0,6/1 kV 10×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 13.8 Cable Weight (approx.) kg/km: 296 Cu Index: 144
Item Index: 0353 028 05 Item Name: YKSYżo 0,6/1 kV 24×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 17.7 Cable Weight (approx.) kg/km: 477 Cu Index: 230.4
Item Index: 0353 013 05 Item Name: YKSYżo 0,6/1 kV 30×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 20.2 Cable Weight (approx.) kg/km: 736 Cu Index: 432
Item Index: 0353 029 05 Item Name: YKSYżo 0,6/1 kV 24×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 21.4 Cable Weight (approx.) kg/km: 857 Cu Index: 576
Item Index: 0353 014 05 Item Name: YKSYżo 0,6/1 kV 7×4 CPR Class: Eca Outer Diameter (approx.) mm: 14.9 Cable Weight (approx.) kg/km: 439 Cu Index: 268.8
Item Index: 0353 030 05 Item Name: YKSYżo 0,6/1 kV 10×4 CPR Class: Eca Outer Diameter (approx.) mm: 18.8 Cable Weight (approx.) kg/km: 612 Cu Index: 384
Item Index: 0353 015 05 Item Name: YKSYżo 0,6/1 kV 14×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 13.8 Cable Weight (approx.) kg/km: 302 Cu Index: 134.4
Item Index: 0353 031 05 Item Name: YKSYżo 0,6/1 kV 7×10 CPR Class: Eca Outer Diameter (approx.) mm: 18.8 Cable Weight (approx.) kg/km: 873 Cu Index: 672
Item Index: 0353 016 05 Item Name: YKSYżo 0,6/1 kV 61×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 25.3 Cable Weight (approx.) kg/km: 1086 Cu Index: 585.6
Item Index: 0353 017 05 Item Name: YKSYżo 0,6/1 kV 75×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 28.3 Cable Weight (approx.) kg/km: 1326 Cu Index: 720
Item Index: 0353 018 05 Item Name: YKSYżo 0,6/1 kV 48×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 25.3 Cable Weight (approx.) kg/km: 1145 Cu Index: 691.2
Item Index: 0353 019 05 Item Name: YKSYżo 0,6/1 kV 52×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 29.3 Cable Weight (approx.) kg/km: 1762 Cu Index: 1248
Item Index: 0353 020 05 Item Name: YKSYżo 0,6/1 kV 37×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 22 Cable Weight (approx.) kg/km: 896 Cu Index: 532.8
Item Index: 0353 021 05 Item Name: YKSYżo 0,6/1 kV 37×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 24.6 Cable Weight (approx.) kg/km: 1264 Cu Index: 888
Item Index: 0353 022 05 Item Name: YKSYżo 0,6/1 kV 7×6 CPR Class: Eca Outer Diameter (approx.) mm: 16.4 Cable Weight (approx.) kg/km: 585 Cu Index: 403.2
Item Index: 0353 023 05 Item Name: YKSYżo 0,6/1 kV 10×6 CPR Class: Eca Outer Diameter (approx.) mm: 20.8 Cable Weight (approx.) kg/km: 819 Cu Index: 576
Item Index: 0353 024 05 Item Name: YKSYżo 0,6/1 kV 10×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 12.8 Cable Weight (approx.) kg/km: 237 Cu Index: 96
Item Index: 0353 025 05 Item Name: YKSYżo 0,6/1 kV 30×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 18.7 Cable Weight (approx.) kg/km: 571 Cu Index: 288
Item Index: 0353 026 05 Item Name: YKSYżo 0,6/1 kV 40×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 23.6 Cable Weight (approx.) kg/km: 1007 Cu Index: 576
Item Index: 0353 027 05 Item Name: YKSYżo 0,6/1 kV 48×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 23.1 Cable Weight (approx.) kg/km: 874 Cu Index: 460.8
Item Index: 0353 002 05 Item Name: YKSYżo 0,6/1 kV 7×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 10.4 Cable Weight (approx.) kg/km: 174 Cu Index: 67.2
Item Index: 0353 003 05 Item Name: YKSYżo 0,6/1 kV 7×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 11.2 Cable Weight (approx.) kg/km: 216 Cu Index: 100.8
Item Index: 0353 004 05 Item Name: YKSYżo 0,6/1 kV 10×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 15.3 Cable Weight (approx.) kg/km: 403 Cu Index: 240
Item Index: 0353 005 05 Item Name: YKSYżo 0,6/1 kV 14×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 14.9 Cable Weight (approx.) kg/km: 383 Cu Index: 201.6
Item Index: 0353 006 05 Item Name: YKSYżo 0,6/1 kV 24×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 19.1 Cable Weight (approx.) kg/km: 611 Cu Index: 345.6
Item Index: 0353 007 05 Item Name: YKSYżo 0,6/1 kV 15×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 17.5 Cable Weight (approx.) kg/km: 583 Cu Index: 360
Item Index: 0353 008 05 Item Name: YKSYżo 0,6/1 kV 19×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 15.3 Cable Weight (approx.) kg/km: 386 Cu Index: 182.4
Item Index: 0353 009 05 Item Name: YKSYżo 0,6/1 kV 19×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 16.5 Cable Weight (approx.) kg/km: 493 Cu Index: 273.6
Item Index: 0353 010 05 Item Name: YKSYżo 0,6/1 kV 19×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 18.4 Cable Weight (approx.) kg/km: 688 Cu Index: 456
Item Index: 0353 011 05 Item Name: YKSYżo 0,6/1 kV 14×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 16.6 Cable Weight (approx.) kg/km: 529 Cu Index: 336
Item Index: 0353 001 05 Item Name: YKSYżo 0,6/1 kV 7×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 12.3 Cable Weight (approx.) kg/km: 291 Cu Index: 168
Item Index: 0346 020 05 Item Name: YKSY 0,6/1 kV 14×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 16.6 Cable Weight (approx.) kg/km: 529 Cu Index: 336
Item Index: 0346 021 05 Item Name: YKSY 0,6/1 kV 7×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 10.4 Cable Weight (approx.) kg/km: 174 Cu Index: 67.2
Item Index: 0346 019 05 Item Name: YKSY 0,6/1 kV 10×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 15.3 Cable Weight (approx.) kg/km: 403 Cu Index: 240
Item Index: 0346 018 05 Item Name: YKSY 0,6/1 kV 24×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 21.4 Cable Weight (approx.) kg/km: 857 Cu Index: 576
Item Index: 0346 001 05 Item Name: YKSY 0,6/1 kV 10×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 12.8 Cable Weight (approx.) kg/km: 237 Cu Index: 96
Item Index: 0346 002 05 Item Name: YKSY 0,6/1 kV 14×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 13.8 Cable Weight (approx.) kg/km: 302 Cu Index: 134.4
Item Index: 0346 003 05 Item Name: YKSY 0,6/1 kV 19×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 15.3 Cable Weight (approx.) kg/km: 386 Cu Index: 182.4
Item Index: 0346 007 05 Item Name: YKSY 0,6/1 kV 6×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 12.3 Cable Weight (approx.) kg/km: 274 Cu Index: 144
Item Index: 0346 008 05 Item Name: YKSY 0,6/1 kV 7×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 11.2 Cable Weight (approx.) kg/km: 216 Cu Index: 100.8
Item Index: 0346 009 05 Item Name: YKSY 0,6/1 kV 24×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 17.7 Cable Weight (approx.) kg/km: 477 Cu Index: 230.4
Item Index: 0346 010 05 Item Name: YKSY 0,6/1 kV 37×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 20.1 Cable Weight (approx.) kg/km: 682 Cu Index: 355.2
Item Index: 0346 011 05 Item Name: YKSY 0,6/1 kV 37×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 22 Cable Weight (approx.) kg/km: 896 Cu Index: 532.8
Item Index: 0346 012 05 Item Name: YKSY 0,6/1 kV 48×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 23.1 Cable Weight (approx.) kg/km: 874 Cu Index: 460.8
Item Index: 0346 013 05 Item Name: YKSY 0,6/1 kV 61×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 25.3 Cable Weight (approx.) kg/km: 1086 Cu Index: 585.6
Item Index: 0346 014 05 Item Name: YKSY 0,6/1 kV 75×1,0 CPR Class: Eca Outer Diameter (approx.) mm: 28.3 Cable Weight (approx.) kg/km: 1326 Cu Index: 720
Item Index: 0346 015 05 Item Name: YKSY 0,6/1 kV 75×1,5 CPR Class: Eca Outer Diameter (approx.) mm: 30.8 Cable Weight (approx.) kg/km: 1731 Cu Index: 1080
Item Index: 0346 016 05 Item Name: YKSY 0,6/1 kV 7×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 12.3 Cable Weight (approx.) kg/km: 291 Cu Index: 168
Item Index: 0346 017 05 Item Name: YKSY 0,6/1 kV 19×2,5 CPR Class: Eca Outer Diameter (approx.) mm: 18.4 Cable Weight (approx.) kg/km: 688 Cu Index: 456
