YKYFty 0,6/1 kV 2×35 RM

Performance Characteristics

PN-EN50575

Indoor application

Outdoor application

Direct burial

Flame retardant PN-EN 60332-1-2

UV resistance

Mechanical strength

Application Construction Technical Data Special Designs Downloads

Application

YKYFtyżo 0,6/1 kV and YKYFty 0,6/1 kV armoured power cables are designed for electric power transmission. They are also applied in power circuits in industrial plants and power stations and in local distribution networks. The cables are suitable for indoor and outdoor installations, for laying in cable ducts and for direct earth burial. Steel tape armour offers enhanced protection against mechanical damages and rodent attack, it has also shielding properties.

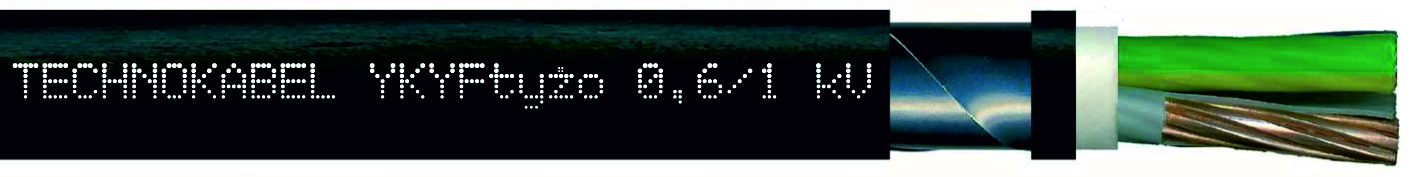

Structure

bare annealed copper conductors meeting requirements of PN-EN 60228 standard:

RE - class 1 circular single-wire, RM - class 2 circular multi-wire, SM - class 2 sector shaped multi-wire,

PVC insulation - colours in accordance with PN-HD 308 standard, green-yellow protective conductor in YKYFtyżo 0,6/1 kV cable,
insulated conductors laid-up in a cable core,
PVC cable sheath,
galvanized steel tape armour,
black PVC cable covering, other colours also available.

Characteristics	Descritpion
Operating voltage Uo/U	0,6/1 kV
Voltage test	4 kV sk
Minimum insulation resistance	20 MΩ·km
Conductor temperature limit in work conditions	+ 70°C
Conductor temperature limit at short-circuit	+ 160°C
Operating temperature range during operation	from - 30 to + 70°C
Operating temperature range during installation	from - 5 to + 50°C
Minimum bending radius (single core cables)	15 x cable diameter
Minimum bending radius (multi core cables)	12 x cable diameter
Cable combustibillity	flame retardant
Combustibillity tests	PN-EN 60332-1-2, IEC 60332-1-2
Reference standards	IEC 60502-1, PN-93/E-90401, PN-HD 603 S1
CPR-class reaction on fire	Eca
DoP declarations are available at	technokabel.com.pl
The cable meets requirements of the low voltage direction	2014/35/UE

Available Upon Request

YKYFtyżo-O 0,6/1 kV and YKYFty-O 0,6/1 kV - cables designed for frequent contact with petroleum products, as in petrol stations and stores, where engine fuels and lubricants are pumped or handled. The cable sheath is then made of special PVC compound meeting oil resistance requirements of Polish standard PN-EN 60811-404. XnKXSFtxnżo 0,6/1 kV and XnKXSFtxn 0,6/1 kV - halogen free cables, applied when higher safety in case of fire is required. The cables are flame retardant, their smoke emission in fire is low and released gases are not corrosive.

Technical data sheet CE declaration DoP/KDWU

Item Index	Item Name	CPR Class	Outer Diameter (approx.) mm	Cable Weight (approx.) kg/km	Cu Index
Item Index: 0954 056 05	Item Name: YKYFtyżo 0,6/1 kV 5×70 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 41.3	Cable Weight (approx.) kg/km: 4691	Cu Index: 3360
Item Index: 0954 057 05	Item Name: YKYFtyżo 0,6/1 kV 3×50 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 29.7	Cable Weight (approx.) kg/km: 2241	Cu Index: 1440
Item Index: 0954 058 05	Item Name: YKYFtyżo 0,6/1 kV 4×70 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 37.2	Cable Weight (approx.) kg/km: 3809	Cu Index: 2688
Item Index: 0954 026 05	Item Name: YKYFtyżo 0,6/1 kV 3×25 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 23.4	Cable Weight (approx.) kg/km: 1312	Cu Index: 720
Item Index: 0954 027 05	Item Name: YKYFtyżo 0,6/1 kV 3×16 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 18.7	Cable Weight (approx.) kg/km: 867	Cu Index: 460.8
Item Index: 0954 028 05	Item Name: YKYFtyżo 0,6/1 kV 3×6 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 14.9	Cable Weight (approx.) kg/km: 474	Cu Index: 172.8
Item Index: 0954 029 05	Item Name: YKYFtyżo 0,6/1 kV 3×1,0 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 10.6	Cable Weight (approx.) kg/km: 206	Cu Index: 28.8
Item Index: 0954 030 05	Item Name: YKYFtyżo 0,6/1 kV 5×1,0 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 11.9	Cable Weight (approx.) kg/km: 264	Cu Index: 48
Item Index: 0954 031 05	Item Name: YKYFtyżo 0,6/1 kV 4×1,0 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 11.2	Cable Weight (approx.) kg/km: 232	Cu Index: 38.4
Item Index: 0954 032 05	Item Name: YKYFtyżo 0,6/1 kV 4×95 SM	CPR Class:	Outer Diameter (approx.) mm: 40	Cable Weight (approx.) kg/km: 4835	Cu Index: 3648
Item Index: 0954 033 05	Item Name: YKYFtyżo 0,6/1 kV 3×10 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 16.8	Cable Weight (approx.) kg/km: 646	Cu Index: 288
Item Index: 0954 034 05	Item Name: YKYFtyżo 0,6/1 kV 3×35 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 25.7	Cable Weight (approx.) kg/km: 1668	Cu Index: 1008
Item Index: 0954 035 05	Item Name: YKYFtyżo 0,6/1 kV 4×150 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 52.3	Cable Weight (approx.) kg/km: 7699	Cu Index: 5760
Item Index: 0954 020 05	Item Name: YKYFtyżo 0,6/1 kV 4×16 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 20.5	Cable Weight (approx.) kg/km: 1074	Cu Index: 614.4
Item Index: 0954 021 05	Item Name: YKYFtyżo 0,6/1 kV 5×35 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 31	Cable Weight (approx.) kg/km: 2526	Cu Index: 1680
Item Index: 0954 022 05	Item Name: YKYFtyżo 0,6/1 kV 3×4 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 13.8	Cable Weight (approx.) kg/km: 386	Cu Index: 115.2
Item Index: 0954 023 05	Item Name: YKYFtyżo 0,6/1 kV 3×2,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 11.9	Cable Weight (approx.) kg/km: 281	Cu Index: 72
Item Index: 0954 024 05	Item Name: YKYFtyżo 0,6/1 kV 5×95 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 47.9	Cable Weight (approx.) kg/km: 6455	Cu Index: 4560
Item Index: 0954 025 05	Item Name: YKYFtyżo 0,6/1 kV 5×10 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 19.8	Cable Weight (approx.) kg/km: 935	Cu Index: 480
Item Index: 0954 011 05	Item Name: YKYFtyżo 0,6/1 kV 4×6 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 16.2	Cable Weight (approx.) kg/km: 571	Cu Index: 230.4
Item Index: 0954 012 05	Item Name: YKYFtyżo 0,6/1 kV 4×50 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 32.6	Cable Weight (approx.) kg/km: 2800	Cu Index: 1920
Item Index: 0954 013 05	Item Name: YKYFtyżo 0,6/1 kV 4×1,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 11.8	Cable Weight (approx.) kg/km: 266	Cu Index: 57.6
Item Index: 0954 014 05	Item Name: YKYFtyżo 0,6/1 kV 4×10 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 18.1	Cable Weight (approx.) kg/km: 778	Cu Index: 384
Item Index: 0954 015 05	Item Name: YKYFtyżo 0,6/1 kV 3×1,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 11.1	Cable Weight (approx.) kg/km: 234	Cu Index: 43.2
Item Index: 0954 016 05	Item Name: YKYFtyżo 0,6/1 kV 5×6 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 17.5	Cable Weight (approx.) kg/km: 672	Cu Index: 288
Item Index: 0954 017 05	Item Name: YKYFtyżo 0,6/1 kV 4×25 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 25.5	Cable Weight (approx.) kg/km: 1617	Cu Index: 960
Item Index: 0954 018 05	Item Name: YKYFtyżo 0,6/1 kV 5×25 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 28	Cable Weight (approx.) kg/km: 1957	Cu Index: 1200
Item Index: 0954 019 05	Item Name: YKYFtyżo 0,6/1 kV 3×35 RM+16 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 31.4	Cable Weight (approx.) kg/km: 2230	Cu Index: 1162
Item Index: 0954 003 05	Item Name: YKYFtyżo 0,6/1 kV 5×4 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 16.1	Cable Weight (approx.) kg/km: 538	Cu Index: 192
Item Index: 0954 004 05	Item Name: YKYFtyżo 0,6/1 kV 4×4 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 14.8	Cable Weight (approx.) kg/km: 454	Cu Index: 153.6
Item Index: 0954 005 05	Item Name: YKYFtyżo 0,6/1 kV 5×16 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 22.3	Cable Weight (approx.) kg/km: 1288	Cu Index: 768
Item Index: 0954 008 05	Item Name: YKYFtyżo 0,6/1 kV 4×2,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 12.7	Cable Weight (approx.) kg/km: 326	Cu Index: 96
Item Index: 0954 009 05	Item Name: YKYFtyżo 0,6/1 kV 4×35 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 28.2	Cable Weight (approx.) kg/km: 2080	Cu Index: 1344
Item Index: 0954 010 05	Item Name: YKYFtyżo 0,6/1 kV 5×50 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 35.8	Cable Weight (approx.) kg/km: 3403	Cu Index: 2400
Item Index: 0954 002 05	Item Name: YKYFtyżo 0,6/1 kV 5×1,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 12.6	Cable Weight (approx.) kg/km: 307	Cu Index: 72
Item Index: 0952 038 05	Item Name: YKYFty 0,6/1 kV 5×50 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 35.8	Cable Weight (approx.) kg/km: 3403	Cu Index: 2400
Item Index: 0952 039 05	Item Name: YKYFty 0,6/1 kV 4×50 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 32.6	Cable Weight (approx.) kg/km: 2800	Cu Index: 1920
Item Index: 0952 040 05	Item Name: YKYFty 0,6/1 kV 4×70 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 36.7	Cable Weight (approx.) kg/km: 3758	Cu Index: 2688
Item Index: 0952 041 05	Item Name: YKYFty 0,6/1 kV 4×95 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 43.2	Cable Weight (approx.) kg/km: 5231	Cu Index: 3648
Item Index: 0952 042 05	Item Name: YKYFty 0,6/1 kV 2×35 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 24.2	Cable Weight (approx.) kg/km: 1343	Cu Index: 672
Item Index: 0952 044 05	Item Name: YKYFty 0,6/1 kV 4×120 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 47.2	Cable Weight (approx.) kg/km: 6221	Cu Index: 4608
Item Index: 0952 045 05	Item Name: YKYFty 0,6/1 kV 4×150 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 52.3	Cable Weight (approx.) kg/km: 7699	Cu Index: 5760
Item Index: 0952 046 05	Item Name: YKYFty 0,6/1 kV 3×25 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 23.4	Cable Weight (approx.) kg/km: 1312	Cu Index: 720
Item Index: 0952 047 05	Item Name: YKYFty 0,6/1 kV 4×185 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 58.2	Cable Weight (approx.) kg/km: 9729	Cu Index: 7104
Item Index: 0952 048 05	Item Name: YKYFty 0,6/1 kV 1×185 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 26	Cable Weight (approx.) kg/km: 2256	Cu Index: 1776
Item Index: 0952 049 05	Item Name: YKYFty 0,6/1 kV 1×240 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 28.8	Cable Weight (approx.) kg/km: 2876	Cu Index: 2304
Item Index: 0952 050 05	Item Name: YKYFty 0,6/1 kV 4×240 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 64.9	Cable Weight (approx.) kg/km: 12549	Cu Index: 9216
Item Index: 0952 051 05	Item Name: YKYFty 0,6/1 kV 1×150 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 23.8	Cable Weight (approx.) kg/km: 1851	Cu Index: 1440
Item Index: 0952 052 05	Item Name: YKYFty 0,6/1 kV 1×120 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 21.7	Cable Weight (approx.) kg/km: 1508	Cu Index: 1152
Item Index: 0954 001 05	Item Name: YKYFtyżo 0,6/1 kV 5×2,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 13.6	Cable Weight (approx.) kg/km: 380	Cu Index: 120
Item Index: 0952 036 05	Item Name: YKYFty 0,6/1 kV 4×35 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 28.2	Cable Weight (approx.) kg/km: 2080	Cu Index: 1344
Item Index: 0952 029 05	Item Name: YKYFty 0,6/1 kV 5×25 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 28	Cable Weight (approx.) kg/km: 1957	Cu Index: 1200
Item Index: 0952 030 05	Item Name: YKYFty 0,6/1 kV 2×25 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 21.9	Cable Weight (approx.) kg/km: 1061	Cu Index: 480
Item Index: 0952 031 05	Item Name: YKYFty 0,6/1 kV 3×1,0 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 10.6	Cable Weight (approx.) kg/km: 206	Cu Index: 28.8
Item Index: 0952 032 05	Item Name: YKYFty 0,6/1 kV 2×6 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 14.2	Cable Weight (approx.) kg/km: 405	Cu Index: 115.2
Item Index: 0952 033 05	Item Name: YKYFty 0,6/1 kV 5×70 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 41.3	Cable Weight (approx.) kg/km: 4588	Cu Index: 3360
Item Index: 0952 034 05	Item Name: YKYFty 0,6/1 kV 3×35 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 25.7	Cable Weight (approx.) kg/km: 1668	Cu Index: 1008
Item Index: 0952 035 05	Item Name: YKYFty 0,6/1 kV 3×70 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 33.3	Cable Weight (approx.) kg/km: 2984	Cu Index: 2016
Item Index: 0952 014 05	Item Name: YKYFty 0,6/1 kV 5×10 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 19.8	Cable Weight (approx.) kg/km: 935	Cu Index: 480
Item Index: 0952 015 05	Item Name: YKYFty 0,6/1 kV 4×10 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 18.1	Cable Weight (approx.) kg/km: 778	Cu Index: 384
Item Index: 0952 016 05	Item Name: YKYFty 0,6/1 kV 3×10 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 16.8	Cable Weight (approx.) kg/km: 646	Cu Index: 288
Item Index: 0952 017 05	Item Name: YKYFty 0,6/1 kV 4×4 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 14.8	Cable Weight (approx.) kg/km: 454	Cu Index: 153.6
Item Index: 0952 018 05	Item Name: YKYFty 0,6/1 kV 2×1,0 RE	CPR Class:	Outer Diameter (approx.) mm: 10.2	Cable Weight (approx.) kg/km: 187	Cu Index: 19.2
Item Index: 0952 019 05	Item Name: YKYFty 0,6/1 kV 4×1,0 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 11.2	Cable Weight (approx.) kg/km: 232	Cu Index: 38.4
Item Index: 0952 020 05	Item Name: YKYFty 0,6/1 kV 2×1,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 10.7	Cable Weight (approx.) kg/km: 211	Cu Index: 28.8
Item Index: 0952 021 05	Item Name: YKYFty 0,6/1 kV 2×4 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 13.2	Cable Weight (approx.) kg/km: 336	Cu Index: 76.8
Item Index: 0952 022 05	Item Name: YKYFty 0,6/1 kV 2×16 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 17.8	Cable Weight (approx.) kg/km: 714	Cu Index: 307.2
Item Index: 0952 023 05	Item Name: YKYFty 0,6/1 kV 3×6 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 14.9	Cable Weight (approx.) kg/km: 474	Cu Index: 172.8
Item Index: 0952 024 05	Item Name: YKYFty 0,6/1 kV 2×10 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 16	Cable Weight (approx.) kg/km: 542	Cu Index: 192
Item Index: 0952 025 05	Item Name: YKYFty 0,6/1 kV 4×25 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 25.5	Cable Weight (approx.) kg/km: 1617	Cu Index: 960
Item Index: 0952 026 05	Item Name: YKYFty 0,6/1 kV 5×35 RM	CPR Class: Eca	Outer Diameter (approx.) mm: 31	Cable Weight (approx.) kg/km: 2526	Cu Index: 1680
Item Index: 0952 027 05	Item Name: YKYFty 0,6/1 kV 4×1,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 11.8	Cable Weight (approx.) kg/km: 266	Cu Index: 57.6
Item Index: 0952 028 05	Item Name: YKYFty 0,6/1 kV 3×16 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 18.7	Cable Weight (approx.) kg/km: 867	Cu Index: 460.8
Item Index: 0952 001 05	Item Name: YKYFty 0,6/1 kV 4×16 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 20.5	Cable Weight (approx.) kg/km: 1074	Cu Index: 614.4
Item Index: 0952 002 05	Item Name: YKYFty 0,6/1 kV 5×1,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 12.6	Cable Weight (approx.) kg/km: 307	Cu Index: 72
Item Index: 0952 003 05	Item Name: YKYFty 0,6/1 kV 5×4 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 16.1	Cable Weight (approx.) kg/km: 538	Cu Index: 192
Item Index: 0952 004 05	Item Name: YKYFty 0,6/1 kV 5×2,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 13.6	Cable Weight (approx.) kg/km: 380	Cu Index: 120
Item Index: 0952 005 05	Item Name: YKYFty 0,6/1 kV 5×16 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 22.3	Cable Weight (approx.) kg/km: 1288	Cu Index: 768
Item Index: 0952 006 05	Item Name: YKYFty 0,6/1 kV 3×4 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 13.8	Cable Weight (approx.) kg/km: 386	Cu Index: 115.2
Item Index: 0952 007 05	Item Name: YKYFty 0,6/1 kV 5×1,0 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 11.9	Cable Weight (approx.) kg/km: 264	Cu Index: 48
Item Index: 0952 008 05	Item Name: YKYFty 0,6/1 kV 2×2,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 11.5	Cable Weight (approx.) kg/km: 253	Cu Index: 48
Item Index: 0952 009 05	Item Name: YKYFty 0,6/1 kV 5×6 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 17.5	Cable Weight (approx.) kg/km: 672	Cu Index: 288
Item Index: 0952 010 05	Item Name: YKYFty 0,6/1 kV 4×6 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 16.2	Cable Weight (approx.) kg/km: 571	Cu Index: 230.4
Item Index: 0952 011 05	Item Name: YKYFty 0,6/1 kV 3×2,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 11.9	Cable Weight (approx.) kg/km: 281	Cu Index: 72
Item Index: 0952 012 05	Item Name: YKYFty 0,6/1 kV 3×1,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 10.9	Cable Weight (approx.) kg/km: 219	Cu Index: 43.2
Item Index: 0952 013 05	Item Name: YKYFty 0,6/1 kV 4×2,5 RE	CPR Class: Eca	Outer Diameter (approx.) mm: 12.7	Cable Weight (approx.) kg/km: 326	Cu Index: 96
