Product Name

YnKXSżo 0,6/1 kV 5×16 RE

Performance Characteristics

PN-EN50575
PN-EN50575
Indoor application
Indoor application
Outdoor application
Outdoor application
Direct burial
Direct burial
Flame retardant PN-EN 60332-1-2
Flame retardant PN-EN 60332-1-2
UV resistance
UV resistance
YnKXSżo 0,6/1 kV 5×16 RE
Application Construction Technical Data Special Designs Downloads

Application

YnKXSżo 0,6/1 kV and YnKXS 0,6/1 kV power cables are designed for electric power transmission. They are also applied in power circuits in industrial plants and power stations and in local distribution networks. The cables are suitable for indoor and outdoor installations, for laying in cable ducts and for direct earth burial. Improved electrical properties, small dimensions and weight compared to the cables with PVC insulation is achieved using cross-linked polyethylene insulation. The cable sheath is then made of special self-extinguishing PVC of reduced combustibility and pass combustibility test according to EN 60332-3 standard.

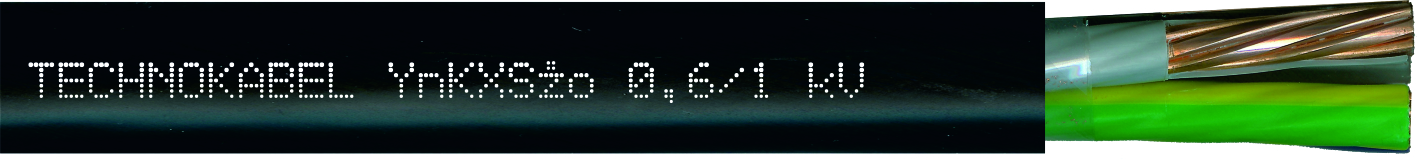

Structure


  • bare annealed copper conductors meeting requirements of PN-EN 60228 standard:
RE - class 1 circular single-wire, RM - class 2 circular multi-wire, SM - class 2 sector shaped multi-wire,
  • cross-linked polyethylene (XLPE) insulation - colours in accordance with PN-HD 308 standard, green-yellow protec­tive conductor in YnKXSżo 0,6/1 kV cable,
  • insulated conductors laid-up in a cable core,
  • black PVC cable sheath, other colours also available.
Characteristics Descritpion
Operating voltage Uo/U 0,6/1 kV
Voltage test 4 kV sk
Minimum insulation resistance 100 MΩ·km
Conductor temperature limit in work conditions + 90°C
Conductor temperature limit at short-circuit + 250°C
Operating temperature range during operation from -30 to + 70°C
Operating temperature range during installation from -5 to + 50°C
Minimum bending radius (single core cables) 15 x cable diameter
Minimum bending radius (multi core cables) 12 x cable diameter
Cable combustibillity flame retardant
Combustibillity tests PN-EN 60332-1-2, IEC 60332-1-2
> 25 mm2 PN-EN 60332-3-23, IEC 60332-3-23
< 25 mm2 PN-EN 60332-3-24, IEC 60332-3-24
Reference standards IEC 60502-1, PN-HD 603 S1
CPR-class reaction on fire Eca
DoP declarations are available at www.technokabel.com.pl
The cable meets requirements of the low voltage direction 2014/35/UE

Available Upon Request

YKXSżo-O 0,6/1 kV and YKXS-O 0,6/1 kV - cables designed for frequent contact with petroleum products, as in petrol stations and stores, where engine fuels and lubricants are pumped or handled. The cable sheath is then made of special PVC compound meeting oil resistance requirements of Polish standard PN-EN 60811-404. XnKXSżo 0,6/1 kV and XnKXS 0,6/1 kV - halogen free cables, applied when higher safety in case of fire is required. The cables are flame retardant, their smoke emission in fire is low and released gases are not corrosive. Steel wire or steel tape armoured cables as above applied in locations where enhanced protection against mechanical damages is required
Item Index Item Name CPR Class Outer Diameter (approx.) mm Cable Weight (approx.) kg/km Cu Index
Item Index: 1072 006 05 Item Name: YnKXSżo-O 0,6/1 kV 3×10 RE CPR Class: Eca Outer Diameter (approx.) mm: 13.2 Cable Weight (approx.) kg/km: 405 Cu Index: 288
Item Index: 1072 007 05 Item Name: YnKXSżo-O 0,6/1 kV 4×50 RM CPR Class: Eca Outer Diameter (approx.) mm: 27.8 Cable Weight (approx.) kg/km: 2195 Cu Index: 1920
Item Index: 1072 008 05 Item Name: YnKXSżo-O 0,6/1 kV 1×150 RM CPR Class: Eca Outer Diameter (approx.) mm: 20.6 Cable Weight (approx.) kg/km: 1510 Cu Index: 1440
Item Index: 1072 009 05 Item Name: YnKXSżo-O 0,6/1 kV 5×10 RE CPR Class: Eca Outer Diameter (approx.) mm: 15.8 Cable Weight (approx.) kg/km: 619 Cu Index: 480
Item Index: 1072 010 05 Item Name: YnKXSżo-O 0,6/1 kV 4×10 RE CPR Class: Eca Outer Diameter (approx.) mm: 14.4 Cable Weight (approx.) kg/km: 509 Cu Index: 384
Item Index: 1072 011 05 Item Name: YnKXSżo-O 0,6/1 kV 4×35 RM CPR Class: Eca Outer Diameter (approx.) mm: 24.4 Cable Weight (approx.) kg/km: 1630 Cu Index: 1344
Item Index: 1072 012 05 Item Name: YnKXSżo-O 0,6/1 kV 3×6 RE CPR Class: Eca Outer Diameter (approx.) mm: 11.5 Cable Weight (approx.) kg/km: 272 Cu Index: 172.8
Item Index: 1072 013 05 Item Name: YnKXSżo-O 0,6/1 kV 5×70 RM CPR Class: Eca Outer Diameter (approx.) mm: 36.6 Cable Weight (approx.) kg/km: 3922 Cu Index: 3360
Item Index: 1072 014 05 Item Name: YnKXSżo-O 0,6/1 kV 5×2,5 RE CPR Class: Eca Outer Diameter (approx.) mm: 11 Cable Weight (approx.) kg/km: 218 Cu Index: 120
Item Index: 1072 015 05 Item Name: YnKXSżo-O 0,6/1 kV 3×16 RE CPR Class: Eca Outer Diameter (approx.) mm: 15.7 Cable Weight (approx.) kg/km: 634 Cu Index: 460.8
Item Index: 1072 016 05 Item Name: YnKXSżo-O 0,6/1 kV 5×16 RE CPR Class: Eca Outer Diameter (approx.) mm: 18.7 Cable Weight (approx.) kg/km: 970 Cu Index: 768
Item Index: 1072 017 05 Item Name: YnKXSżo-O 0,6/1 kV 5×50 RM CPR Class: Eca Outer Diameter (approx.) mm: 30.9 Cable Weight (approx.) kg/km: 2743 Cu Index: 2400
Item Index: 1072 018 05 Item Name: YnKXSżo-O 0,6/1 kV 5×35 RM CPR Class: Eca Outer Diameter (approx.) mm: 27 Cable Weight (approx.) kg/km: 2031 Cu Index: 1680
Item Index: 1072 019 05 Item Name: YnKXSżo-O 0,6/1 kV 5×4 RE CPR Class: Eca Outer Diameter (approx.) mm: 12.3 Cable Weight (approx.) kg/km: 304 Cu Index: 192
Item Index: 1072 005 05 Item Name: YnKXSżo-O 0,6/1 kV 5×6 RE CPR Class: Eca Outer Diameter (approx.) mm: 13.6 Cable Weight (approx.) kg/km: 407 Cu Index: 288
Item Index: 1072 003 05 Item Name: YnKXSżo-O 0,6/1 kV 4×2,5 RE CPR Class: Eca Outer Diameter (approx.) mm: 10.2 Cable Weight (approx.) kg/km: 181 Cu Index: 96
Item Index: 1072 004 05 Item Name: YnKXSżo-O 0,6/1 kV 4×4 RE CPR Class: Eca Outer Diameter (approx.) mm: 11.3 Cable Weight (approx.) kg/km: 251 Cu Index: 153.6
Item Index: 1072 001 05 Item Name: YnKXSżo-O 0,6/1 kV 3×2,5 RE CPR Class: Eca Outer Diameter (approx.) mm: 9.4 Cable Weight (approx.) kg/km: 150 Cu Index: 72
Item Index: 1072 002 05 Item Name: YnKXSżo-O 0,6/1 kV 3×4 RE CPR Class: Eca Outer Diameter (approx.) mm: 10.4 Cable Weight (approx.) kg/km: 204 Cu Index: 115.2
Item Index: 0921 082 05 Item Name: YnKXSżo 0,6/1 kV 1×35 RM CPR Class: Eca Outer Diameter (approx.) mm: 11 Cable Weight (approx.) kg/km: 379 Cu Index: 336
Item Index: 0921 083 05 Item Name: YnKXSżo 0,6/1 kV 4×185 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 52.4 Cable Weight (approx.) kg/km: 8391 Cu Index: 7104
Item Index: 0921 084 05 Item Name: YnKXSżo 0,6/1 kV 4×16 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 17.9 Cable Weight (approx.) kg/km: 823 Cu Index: 614.4
Item Index: 0921 085 05 Item Name: YnKXSżo 0,6/1 kV 1×6 RE CPR Class: Outer Diameter (approx.) mm: 6.4 Cable Weight (approx.) kg/km: 91 Cu Index: 57.6
Item Index: 0921 086 05 Item Name: YnKXSżo 0,6/1 kV 1×16 RE CPR Class: Eca Outer Diameter (approx.) mm: 8.1 Cable Weight (approx.) kg/km: 191 Cu Index: 153.6
Item Index: 0921 087 05 Item Name: YnKXSżo 0,6/1 kV 3×120 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 37.4 Cable Weight (approx.) kg/km: 4207 Cu Index: 3456
Item Index: 0921 088 05 Item Name: YnKXSżo 0,6/1 kV 5×2,5 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 11.7 Cable Weight (approx.) kg/km: 243 Cu Index: 120
Item Index: 0921 077 05 Item Name: YnKXSżo 0,6/1 kV 3×10 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 13.8 Cable Weight (approx.) kg/km: 440 Cu Index: 288
Item Index: 0921 080 05 Item Name: YnKXSżo 0,6/1 kV 1×25 RM CPR Class: Eca Outer Diameter (approx.) mm: 10 Cable Weight (approx.) kg/km: 286 Cu Index: 240
Item Index: 0921 070 05 Item Name: YnKXSżo 0,6/1 kV 1×300 RM CPR Class: Eca Outer Diameter (approx.) mm: 28 Cable Weight (approx.) kg/km: 2954 Cu Index: 2880
Item Index: 0921 071 05 Item Name: YnKXSżo 0,6/1 kV 1×50 RM CPR Class: Eca Outer Diameter (approx.) mm: 12.4 Cable Weight (approx.) kg/km: 505 Cu Index: 480
Item Index: 0921 072 05 Item Name: YnKXSżo 0,6/1 kV 5×185 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 58.3 Cable Weight (approx.) kg/km: 10347 Cu Index: 8880
Item Index: 0921 073 05 Item Name: YnKXSżo 0,6/1 kV 1×120 RM CPR Class: Eca Outer Diameter (approx.) mm: 18 Cable Weight (approx.) kg/km: 1198 Cu Index: 1152
Item Index: 0921 074 05 Item Name: YnKXSżo 0,6/1 kV 1×240 RM CPR Class: Eca Outer Diameter (approx.) mm: 25.1 Cable Weight (approx.) kg/km: 2434 Cu Index: 2304
Item Index: 0921 075 05 Item Name: YnKXSżo 0,6/1 kV 1×150 RM CPR Class: Eca Outer Diameter (approx.) mm: 20.1 Cable Weight (approx.) kg/km: 1503 Cu Index: 1440
Item Index: 0921 076 05 Item Name: YnKXSżo 0,6/1 kV 1×95 RM CPR Class: Eca Outer Diameter (approx.) mm: 16.3 Cable Weight (approx.) kg/km: 1005 Cu Index: 912
Item Index: 0921 043 05 Item Name: YnKXSżo 0,6/1 kV 3×1,5 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 9 Cable Weight (approx.) kg/km: 128 Cu Index: 43.2
Item Index: 0921 044 05 Item Name: YnKXSżo 0,6/1 kV 3×35 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 22 Cable Weight (approx.) kg/km: 1295 Cu Index: 1008
Item Index: 0921 025 05 Item Name: YnKXSżo 0,6/1 kV 4×50 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 27.8 Cable Weight (approx.) kg/km: 2216 Cu Index: 1920
Item Index: 0921 030 05 Item Name: YnKXSżo 0,6/1 kV 3×25 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 19.7 Cable Weight (approx.) kg/km: 978 Cu Index: 720
Item Index: 0921 031 05 Item Name: YnKXSżo 0,6/1 kV 5×6 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 14.2 Cable Weight (approx.) kg/km: 454 Cu Index: 288
Item Index: 0921 032 05 Item Name: YnKXSżo 0,6/1 kV 5×6 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 13.6 Cable Weight (approx.) kg/km: 419 Cu Index: 288
Item Index: 0921 033 05 Item Name: YnKXSżo 0,6/1 kV 5×1,5 RE CPR Class: Eca Outer Diameter (approx.) mm: 10 Cable Weight (approx.) kg/km: 167 Cu Index: 72
Item Index: 0921 034 05 Item Name: YnKXSżo 0,6/1 kV 3×50 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 25.1 Cable Weight (approx.) kg/km: 1777 Cu Index: 1440
Item Index: 0921 035 05 Item Name: YnKXSżo 0,6/1 kV 3×95 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 33.4 Cable Weight (approx.) kg/km: 3463 Cu Index: 2736
Item Index: 0921 036 05 Item Name: YnKXSżo 0,6/1 kV 4×2,5 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 10.8 Cable Weight (approx.) kg/km: 204 Cu Index: 96
Item Index: 0921 037 05 Item Name: YnKXSżo 0,6/1 kV 4×120 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 41.8 Cable Weight (approx.) kg/km: 5359 Cu Index: 4608
Item Index: 0921 038 05 Item Name: YnKXSżo 0,6/1 kV 4×150 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 46.6 Cable Weight (approx.) kg/km: 6702 Cu Index: 5760
Item Index: 0921 039 05 Item Name: YnKXSżo 0,6/1 kV 4×240 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 58.5 Cable Weight (approx.) kg/km: 11021 Cu Index: 9216
Item Index: 0921 040 05 Item Name: YnKXSżo 0,6/1 kV 5×120 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 46.3 Cable Weight (approx.) kg/km: 6587 Cu Index: 5760
Item Index: 0921 041 05 Item Name: YnKXSżo 0,6/1 kV 5×95 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 41.7 Cable Weight (approx.) kg/km: 5478 Cu Index: 4560
Item Index: 0921 042 05 Item Name: YnKXSżo 0,6/1 kV 5×150 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 51.9 Cable Weight (approx.) kg/km: 8273 Cu Index: 7200
Item Index: 0921 024 05 Item Name: YnKXSżo 0,6/1 kV 5×2,5 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 11 Cable Weight (approx.) kg/km: 227 Cu Index: 120
Item Index: 0921 010 05 Item Name: YnKXSżo 0,6/1 kV 3×16 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 15.7 Cable Weight (approx.) kg/km: 638 Cu Index: 460.8
Item Index: 0921 011 05 Item Name: YnKXSżo 0,6/1 kV 4×10 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 14.4 Cable Weight (approx.) kg/km: 522 Cu Index: 384
Item Index: 0921 012 05 Item Name: YnKXSżo 0,6/1 kV 5×10 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 15.8 Cable Weight (approx.) kg/km: 634 Cu Index: 480
Item Index: 0921 013 05 Item Name: YnKXSżo 0,6/1 kV 4×25 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 21.6 Cable Weight (approx.) kg/km: 1228 Cu Index: 960
Item Index: 0921 014 05 Item Name: YnKXSżo 0,6/1 kV 4×35 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 24.4 Cable Weight (approx.) kg/km: 1647 Cu Index: 1344
Item Index: 0921 015 05 Item Name: YnKXSżo 0,6/1 kV 5×35 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 27 Cable Weight (approx.) kg/km: 2021 Cu Index: 1680
Item Index: 0921 016 05 Item Name: YnKXSżo 0,6/1 kV 4×70 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 32.6 Cable Weight (approx.) kg/km: 3135 Cu Index: 2688
Item Index: 0921 017 05 Item Name: YnKXSżo 0,6/1 kV 3×1,5 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 8.6 Cable Weight (approx.) kg/km: 120 Cu Index: 43.2
Item Index: 0921 018 05 Item Name: YnKXSżo 0,6/1 kV 3×6 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 11.5 Cable Weight (approx.) kg/km: 282 Cu Index: 172.8
Item Index: 0921 019 05 Item Name: YnKXSżo 0,6/1 kV 5×70 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 36.6 Cable Weight (approx.) kg/km: 3896 Cu Index: 3360
Item Index: 0921 020 05 Item Name: YnKXSżo 0,6/1 kV 4×1,5 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 9.3 Cable Weight (approx.) kg/km: 140 Cu Index: 57.6
Item Index: 0921 021 05 Item Name: YnKXSżo 0,6/1 kV 5×4 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 12.3 Cable Weight (approx.) kg/km: 311 Cu Index: 192
Item Index: 0921 022 05 Item Name: YnKXSżo 0,6/1 kV 5×50 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 30.9 Cable Weight (approx.) kg/km: 2727 Cu Index: 2400
Item Index: 0921 023 05 Item Name: YnKXSżo 0,6/1 kV 4×95 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 37.4 Cable Weight (approx.) kg/km: 4433 Cu Index: 3648
Item Index: 0921 001 05 Item Name: YnKXSżo 0,6/1 kV 4×4 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 11.3 Cable Weight (approx.) kg/km: 260 Cu Index: 153.6
Item Index: 0921 002 05 Item Name: YnKXSżo 0,6/1 kV 4×6 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 12.5 Cable Weight (approx.) kg/km: 348 Cu Index: 230.4
Item Index: 0921 003 05 Item Name: YnKXSżo 0,6/1 kV 5×25 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 24 Cable Weight (approx.) kg/km: 1509 Cu Index: 1200
Item Index: 0921 004 05 Item Name: YnKXSżo 0,6/1 kV 4×2,5 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 10.2 Cable Weight (approx.) kg/km: 189 Cu Index: 96
Item Index: 0921 005 05 Item Name: YnKXSżo 0,6/1 kV 5×16 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 18.7 Cable Weight (approx.) kg/km: 1067 Cu Index: 768
Item Index: 0921 006 05 Item Name: YnKXSżo 0,6/1 kV 4×16 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 17.1 Cable Weight (approx.) kg/km: 798 Cu Index: 614.4
Item Index: 0921 007 05 Item Name: YnKXSżo 0,6/1 kV 3×4 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 10.4 Cable Weight (approx.) kg/km: 212 Cu Index: 115.2
Item Index: 0921 008 05 Item Name: YnKXSżo 0,6/1 kV 3×2,5 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 9.4 Cable Weight (approx.) kg/km: 157 Cu Index: 72
Item Index: 0921 009 05 Item Name: YnKXSżo 0,6/1 kV 3×10 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 13.2 Cable Weight (approx.) kg/km: 417 Cu Index: 288
Item Index: 0876 042 05 Item Name: YnKXS 0,6/1 kV 2×16 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 14.8 Cable Weight (approx.) kg/km: 501 Cu Index: 307.2
Item Index: 0876 043 05 Item Name: YnKXS 0,6/1 kV 3×1,5 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 8.6 Cable Weight (approx.) kg/km: 120 Cu Index: 43.2
Item Index: 0876 044 05 Item Name: YnKXS 0,6/1 kV 2×95 RM CPR Class: Eca Outer Diameter (approx.) mm: 31.1 Cable Weight (approx.) kg/km: 2599 Cu Index: 1824
Item Index: 0876 045 05 Item Name: YnKXS 0,6/1 kV 5×2,5 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 11 Cable Weight (approx.) kg/km: 225 Cu Index: 120
Item Index: 0876 046 05 Item Name: YnKXS 0,6/1 kV 4×1,5 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 9.3 Cable Weight (approx.) kg/km: 140 Cu Index: 57.6
Item Index: 0876 047 05 Item Name: YnKXS 0,6/1 kV 4×10 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 14.4 Cable Weight (approx.) kg/km: 522 Cu Index: 384
Item Index: 0876 048 05 Item Name: YnKXS 0,6/1 kV 4×150 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 46.6 Cable Weight (approx.) kg/km: 6702 Cu Index: 5760
Item Index: 0876 049 05 Item Name: YnKXS 0,6/1 kV 5×6 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 13.6 Cable Weight (approx.) kg/km: 419 Cu Index: 288
Item Index: 0876 050 05 Item Name: YnKXS 0,6/1 kV 3×25 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 19.7 Cable Weight (approx.) kg/km: 978 Cu Index: 720
Item Index: 0876 030 05 Item Name: YnKXS 0,6/1 kV 2×2,5 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 9 Cable Weight (approx.) kg/km: 134 Cu Index: 48
Item Index: 0876 031 05 Item Name: YnKXS 0,6/1 kV 2×6 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 10.9 Cable Weight (approx.) kg/km: 229 Cu Index: 115.2
Item Index: 0876 038 05 Item Name: YnKXS 0,6/1 kV 1×16 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 8.1 Cable Weight (approx.) kg/km: 191 Cu Index: 153.6
Item Index: 0876 039 05 Item Name: YnKXS 0,6/1 kV 1×35 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 11 Cable Weight (approx.) kg/km: 379 Cu Index: 336
Item Index: 0876 040 05 Item Name: YnKXS 0,6/1 kV 1×50 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 12.4 Cable Weight (approx.) kg/km: 505 Cu Index: 480
Item Index: 0876 041 05 Item Name: YnKXS 0,6/1 kV 2×10 RE CPR Class: Eca Outer Diameter (approx.) mm: 12.5 Cable Weight (approx.) kg/km: 331 Cu Index: 192
Item Index: 0876 021 05 Item Name: YnKXS 0,6/1 kV 1×150 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 20.1 Cable Weight (approx.) kg/km: 1508 Cu Index: 1440
Item Index: 0876 022 05 Item Name: YnKXS 0,6/1 kV 4×70 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 32.6 Cable Weight (approx.) kg/km: 3135 Cu Index: 2688
Item Index: 0876 023 05 Item Name: YnKXS 0,6/1 kV 1×95 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 16.3 Cable Weight (approx.) kg/km: 1005 Cu Index: 912
Item Index: 0876 024 05 Item Name: YnKXS 0,6/1 kV 1×25 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 10 Cable Weight (approx.) kg/km: 286 Cu Index: 240
Item Index: 0876 025 05 Item Name: YnKXS 0,6/1 kV 1×185 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 22.5 Cable Weight (approx.) kg/km: 1874 Cu Index: 1776
Item Index: 0876 026 05 Item Name: YnKXS 0,6/1 kV 1×300 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 28 Cable Weight (approx.) kg/km: 2954 Cu Index: 2880
Item Index: 0876 029 05 Item Name: YnKXS 0,6/1 kV 2×25 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 18.5 Cable Weight (approx.) kg/km: 768 Cu Index: 480
Item Index: 0876 014 05 Item Name: YnKXS 0,6/1 kV 4×50 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 27.8 Cable Weight (approx.) kg/km: 2216 Cu Index: 1920
Item Index: 0876 015 05 Item Name: YnKXS 0,6/1 kV 1×240 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 25.6 Cable Weight (approx.) kg/km: 2450 Cu Index: 2304
Item Index: 0876 016 05 Item Name: YnKXS 0,6/1 kV 2×4 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 9.9 Cable Weight (approx.) kg/km: 176 Cu Index: 76.8
Item Index: 0876 017 05 Item Name: YnKXS 0,6/1 kV 5×1,5 RE CPR Class: Eca Outer Diameter (approx.) mm: 10 Cable Weight (approx.) kg/km: 167 Cu Index: 72
Item Index: 0876 018 05 Item Name: YnKXS 0,6/1 kV 2×1,0 RE CPR Class: Outer Diameter (approx.) mm: 7.7 Cable Weight (approx.) kg/km: 88 Cu Index: 19.2
Item Index: 0876 019 05 Item Name: YnKXS 0,6/1 kV 3×1,0 RE CPR Class: Eca Outer Diameter (approx.) mm: 8.1 Cable Weight (approx.) kg/km: 100 Cu Index: 28.8
Item Index: 0876 020 05 Item Name: YnKXS 0,6/1 kV 1×70 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 14.4 Cable Weight (approx.) kg/km: 712 Cu Index: 672
Item Index: 0876 007 05 Item Name: YnKXS 0,6/1 kV 3×6 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 11.5 Cable Weight (approx.) kg/km: 282 Cu Index: 172.8
Item Index: 0876 008 05 Item Name: YnKXS 0,6/1 kV 5×16 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 18.7 Cable Weight (approx.) kg/km: 1067 Cu Index: 768
Item Index: 0876 009 05 Item Name: YnKXS 0,6/1 kV 4×4 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 11.3 Cable Weight (approx.) kg/km: 260 Cu Index: 153.6
Item Index: 0876 010 05 Item Name: YnKXS 0,6/1 kV 4×6 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 12.5 Cable Weight (approx.) kg/km: 348 Cu Index: 230.4
Item Index: 0876 011 05 Item Name: YnKXS 0,6/1 kV 3×95 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 33.4 Cable Weight (approx.) kg/km: 3463 Cu Index: 2736
Item Index: 0876 012 05 Item Name: YnKXS 0,6/1 kV 4×25 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 21.6 Cable Weight (approx.) kg/km: 1228 Cu Index: 960
Item Index: 0876 013 05 Item Name: YnKXS 0,6/1 kV 1×500 RM CPR Class: Eca Outer Diameter (approx.) mm: 33.7 Cable Weight (approx.) kg/km: 5100 Cu Index: 4800
Item Index: 0876 003 05 Item Name: YnKXS 0,6/1 kV 3×4 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 10.4 Cable Weight (approx.) kg/km: 212 Cu Index: 115.2
Item Index: 0876 004 05 Item Name: YnKXS 0,6/1 kV 4×2,5 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 10.2 Cable Weight (approx.) kg/km: 189 Cu Index: 96
Item Index: 0876 005 05 Item Name: YnKXS 0,6/1 kV 5×10 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 15.8 Cable Weight (approx.) kg/km: 634 Cu Index: 480
Item Index: 0876 006 05 Item Name: YnKXS 0,6/1 kV 1×120 RM CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 18 Cable Weight (approx.) kg/km: 1198 Cu Index: 1152
Item Index: 0876 001 05 Item Name: YnKXS 0,6/1 kV 2×1,5 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 8.2 Cable Weight (approx.) kg/km: 104 Cu Index: 28.8
Item Index: 0876 002 05 Item Name: YnKXS 0,6/1 kV 3×2,5 RE CPR Class: Dca-s3,d2,a3 Outer Diameter (approx.) mm: 9.4 Cable Weight (approx.) kg/km: 157 Cu Index: 72
