Product Name

(N)HXH FE180 PH90/E90 0,6/1 kV 1×10 RE

Performance Characteristics

PN-EN50575
PN-EN50575
Indoor application
Indoor application
Outdoor application
Outdoor application
Functional integrity
Functional integrity
Circuit integrity E90 DIN VDE 4102-12
Circuit integrity E90 DIN VDE 4102-12
Flame retardant PN-EN 60332-1-2
Flame retardant PN-EN 60332-1-2
Halogen-free
Halogen-free
UV resistance
UV resistance
(N)HXH FE180 PH90/E90 0,6/1 kV 1×10 RE
Application Construction Technical Data Downloads

Application

TECHNOFLAME (N)HXH FE180 PH90/E90 0,6/1 kV and TECHNOFLAME (N)HXH-J FE180 PH90/E90 0,6/1 kV fire resistant and halogen free power cables, are intended for power supply to fire protection equipment in objects of sharp fire protection requirements, particularly in fire alarm and fire automatic control systems. The cables shall be applied in locations where, in case of fire, higher safety for human beings and expensive electronic equipment is required (subway tunnels, hospitals, shopping centres, supermarkets, cinemas, theatres, stadiums and other public buildings). Functions of the cables are maintained for 90 minutes – power is supplied to equipment which must operate in fire conditions and during fire fighting (e.g. water pumps in fire extinguishing systems, smoke removing fans, emergency lighting and elevators). The cables are certified by Scientific and Research Centre for Fire Protection - National Research Institute (Centrum Naukowo-Badawcze Ochrony Przeciwpożarowej - PIB) at Józefów. The cables can not be used in fire protected rooms with fixed pressure water spraying fire extinguishing systems (sprinkler zones). The cables are flame retardant and their smoke emission is low, emitted fumes are non toxic and non corrosive. The cables are suitable for fixed indoor and outdoor installations. Sheathing is UV radiation resistant. Laying cables in water or direct earth burial are only permitted if additional protection is used.

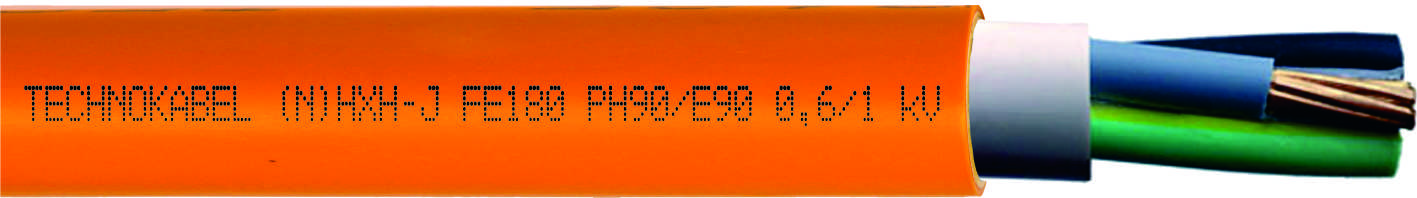

Structure


  • bare annealed copper conductors meeting requirements of PN-EN 60228 standard:
RE - class 1 single wire round conductor, RM - class 2 multiwire round conductor,
  • double special cross-linked silicone rubber insulation – colours:
up to 5 wires in accordance with PN-HD 308, above 5 wires black and white conductor number printed on it, green-yellow protective conductor in the outer layer in TECHNOFLAME (N)HXH-J FE180 PH90/E90 0,6/1 kV cable,
  • insulated conductors laid-up into a cable core,
  • inner covering made of halogen free compound,
  • orange cable sheath made of halogen free compound type HM4 according to HD 604 S1.
Conductor cross-section mm2 1,5 2,5 4 6 10 16 25 35 50
Maximum DC conductor resistance at 20°C Ω/km 12,1 7,41 4,61 3,08 1,83 1,15 0,727 0,524 0,387

Cable installation – should be carried out on a certified cable fastening system, in accordance with the National Technical Assessments (KOT) issued for fastening manufacturers. Only certified cable fixing systems, tested according to DIN 4102 part 12, should be used.

Characteristics Descritpion
Operating voltage Uo/U 0,6/1 kV
Voltage test 4 kV sk
Minimum insulation resistance, at90°C 1011 Ω∙cm
Inductance, approximate 0,7 mH/km
Conductor temperature limit in work conditions + 90°C
Conductor temperature limit at short-circuit + 250°C
Operating temperature range during operation from - 30 to + 90°C
Operating temperature range during installation from - 5 to + 70°C
Minimum bending radius: (single core cables) 15 x cable diameter
Minimum bending radius: (multi core cables) 12 x cable diameter
Corrosivity of emitted gases per very low, halogen free PN-EN 60754-1, PN-EN 60754-2, IEC 60754-2
pH > 4,3
Conductivity < 2,5 μS/mm
Smoke density low smoke density PN-EN 61034-2, IEC 61034-2
Light transmittance, minimum. 60%
Cable combustibillity flame retardant
Combustibillity tests PN-EN 60332-1-2, IEC 60332-1-2, PN-EN 60332-3-24, IEC 60332-3-24
Circuit integrity: E90 DIN 4102-12
Circuit integrity: PH90 PN-EN 50200 or PN-EN IEC 60331-1
Insulation integrity FE180 IEC 60331-21, IEC 60331-11
Reference standards CNBOP-PIB-KOT-2021/0311-3701 wyd.3, WT-TK-44
Class reaction to fire ( PN-EN 13501-6) B2ca-s1a,d0,a1 or B2ca-s1b,d0,a1 or Cca-s2,d0,a1
DoP declarations are available at technokabel.com.pl
The cable meets requirements of the low voltage direction 2014/35/UE
Item Index Item Name CPR Class Outer Diameter (approx.) mm Cable Weight (approx.) kg/km Cu Index
Item Index: 1192 125 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 7×25 RM CPR Class: Outer Diameter (approx.) mm: 25.8 Cable Weight (approx.) kg/km: 2199 Cu Index: 1680
Item Index: 1192 126 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 10×2,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 17.9 Cable Weight (approx.) kg/km: 533 Cu Index: 240
Item Index: 1192 127 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 30×1,5 RE CPR Class: Cca-s2,d0,a1 Outer Diameter (approx.) mm: 24.7 Cable Weight (approx.) kg/km: 979 Cu Index: 432
Item Index: 1192 128 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 1×1,5 RE CPR Class: Outer Diameter (approx.) mm: 5.7 Cable Weight (approx.) kg/km: 51 Cu Index: 14.4
Item Index: 1192 124 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 24×1,5 RE CPR Class: Cca-s2,d0,a1 Outer Diameter (approx.) mm: 23.3 Cable Weight (approx.) kg/km: 827 Cu Index: 345.6
Item Index: 1192 120 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 1×6 RE CPR Class: Outer Diameter (approx.) mm: 7 Cable Weight (approx.) kg/km: 103 Cu Index: 57.6
Item Index: 1192 121 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 2×50 RM CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 25.1 Cable Weight (approx.) kg/km: 1507 Cu Index: 960
Item Index: 1192 122 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 7×4 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 15.6 Cable Weight (approx.) kg/km: 503 Cu Index: 268.8
Item Index: 1192 123 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 12×1,5 RE CPR Class: Cca-s2,d0,a1 Outer Diameter (approx.) mm: 16.9 Cable Weight (approx.) kg/km: 457 Cu Index: 172.8
Item Index: 1192 063 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 24×2,5 RE CPR Class: Cca-s2,d0,a1 Outer Diameter (approx.) mm: 25.6 Cable Weight (approx.) kg/km: 1102 Cu Index: 576
Item Index: 1192 065 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 12×2,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 18.5 Cable Weight (approx.) kg/km: 600 Cu Index: 288
Item Index: 1192 066 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 4×2,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 11.8 Cable Weight (approx.) kg/km: 251 Cu Index: 96
Item Index: 1192 067 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 1×25 RM CPR Class: B2ca-s1a,d0,a1 Outer Diameter (approx.) mm: 10.7 Cable Weight (approx.) kg/km: 309 Cu Index: 240
Item Index: 1192 068 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 2×25 RM CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 20.1 Cable Weight (approx.) kg/km: 890 Cu Index: 480
Item Index: 1192 069 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 10×1,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 16.4 Cable Weight (approx.) kg/km: 410 Cu Index: 144
Item Index: 1192 070 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 2×10 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 13.8 Cable Weight (approx.) kg/km: 400 Cu Index: 192
Item Index: 1192 071 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 1×10 RE CPR Class: Outer Diameter (approx.) mm: 7.8 Cable Weight (approx.) kg/km: 146 Cu Index: 96
Item Index: 1192 072 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 2×6 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 12.2 Cable Weight (approx.) kg/km: 286 Cu Index: 115.2
Item Index: 1192 106 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 1×16 RE CPR Class: B2ca-s1a,d0,a1 Outer Diameter (approx.) mm: 8.7 Cable Weight (approx.) kg/km: 206 Cu Index: 153.6
Item Index: 1192 108 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 1×35 RM CPR Class: B2ca-s1a,d0,a1 Outer Diameter (approx.) mm: 11.7 Cable Weight (approx.) kg/km: 404 Cu Index: 336
Item Index: 1192 110 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 2×16 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 15.8 Cable Weight (approx.) kg/km: 564 Cu Index: 307.2
Item Index: 1192 058 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 3×2,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 10.8 Cable Weight (approx.) kg/km: 207 Cu Index: 72
Item Index: 1192 059 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 14×1,5 RE CPR Class: Cca-s2,d0,a1 Outer Diameter (approx.) mm: 17.8 Cable Weight (approx.) kg/km: 512 Cu Index: 201.6
Item Index: 1192 060 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 12×1,5 RE CPR Class: Cca-s2,d0,a1 Outer Diameter (approx.) mm: 16.9 Cable Weight (approx.) kg/km: 457 Cu Index: 172.8
Item Index: 1192 061 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 7×2,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 14 Cable Weight (approx.) kg/km: 370 Cu Index: 168
Item Index: 1192 045 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 1×70 RM CPR Class: Outer Diameter (approx.) mm: 15.1 Cable Weight (approx.) kg/km: 748 Cu Index: 672
Item Index: 1192 046 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 1×70 RM CPR Class: Outer Diameter (approx.) mm: 15.1 Cable Weight (approx.) kg/km: 748 Cu Index: 672
Item Index: 1192 047 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 2×1,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 9.5 Cable Weight (approx.) kg/km: 144 Cu Index: 28.8
Item Index: 1192 048 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 2×2,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 10.3 Cable Weight (approx.) kg/km: 179 Cu Index: 48
Item Index: 1192 049 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 4×4 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 12.9 Cable Weight (approx.) kg/km: 329 Cu Index: 153.6
Item Index: 1192 050 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 4×6 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 14.1 Cable Weight (approx.) kg/km: 426 Cu Index: 230.4
Item Index: 1192 051 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 1×50 RM CPR Class: B2ca-s1a,d0,a1 Outer Diameter (approx.) mm: 13.3 Cable Weight (approx.) kg/km: 541 Cu Index: 480
Item Index: 1192 052 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 1×95 RM CPR Class: Outer Diameter (approx.) mm: 17.2 Cable Weight (approx.) kg/km: 1054 Cu Index: 912
Item Index: 1192 053 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 1×95 RM CPR Class: Outer Diameter (approx.) mm: 17.2 Cable Weight (approx.) kg/km: 1054 Cu Index: 912
Item Index: 1192 054 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 3×1,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 10 Cable Weight (approx.) kg/km: 165 Cu Index: 43.2
Item Index: 1192 055 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 19×1,5 RE CPR Class: Cca-s2,d0,a1 Outer Diameter (approx.) mm: 20.2 Cable Weight (approx.) kg/km: 666 Cu Index: 273.6
Item Index: 1192 056 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 2×4 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 11.2 Cable Weight (approx.) kg/km: 227 Cu Index: 76.8
Item Index: 1192 038 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 4×70 RM CPR Class: Outer Diameter (approx.) mm: 34.4 Cable Weight (approx.) kg/km: 3408 Cu Index: 2688
Item Index: 1192 039 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 4×95 RM CPR Class: Outer Diameter (approx.) mm: 39.8 Cable Weight (approx.) kg/km: 4808 Cu Index: 3648
Item Index: 1192 040 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 5×95 RM CPR Class: Outer Diameter (approx.) mm: 44.2 Cable Weight (approx.) kg/km: 5939 Cu Index: 4560
Item Index: 1192 041 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 3×16 RM CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 17.5 Cable Weight (approx.) kg/km: 732 Cu Index: 460.8
Item Index: 1192 042 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 4×16 RM CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 19.4 Cable Weight (approx.) kg/km: 920 Cu Index: 614.4
Item Index: 1192 043 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 5×1,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 11.9 Cable Weight (approx.) kg/km: 235 Cu Index: 72
Item Index: 1192 044 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 7×2,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 14 Cable Weight (approx.) kg/km: 370 Cu Index: 168
Item Index: 1192 026 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 4×2,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 11.8 Cable Weight (approx.) kg/km: 251 Cu Index: 96
Item Index: 1192 027 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 3×10 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 14.6 Cable Weight (approx.) kg/km: 493 Cu Index: 288
Item Index: 1192 028 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 3×16 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 16.8 Cable Weight (approx.) kg/km: 708 Cu Index: 460.8
Item Index: 1192 029 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 3×25 RM CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 21.2 Cable Weight (approx.) kg/km: 1097 Cu Index: 720
Item Index: 1192 030 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 3×35 RM CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 23.5 Cable Weight (approx.) kg/km: 1432 Cu Index: 1008
Item Index: 1192 031 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 3×50 RM CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 27 Cable Weight (approx.) kg/km: 1932 Cu Index: 1440
Item Index: 1192 032 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 3×70 RM CPR Class: Outer Diameter (approx.) mm: 30.5 Cable Weight (approx.) kg/km: 2631 Cu Index: 2016
Item Index: 1192 033 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 3×95 RM CPR Class: Outer Diameter (approx.) mm: 35.8 Cable Weight (approx.) kg/km: 3761 Cu Index: 2736
Item Index: 1192 034 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 4×10 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 16.3 Cable Weight (approx.) kg/km: 626 Cu Index: 384
Item Index: 1192 035 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 4×16 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 18.5 Cable Weight (approx.) kg/km: 891 Cu Index: 614.4
Item Index: 1192 036 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 4×25 RM CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 23.4 Cable Weight (approx.) kg/km: 1382 Cu Index: 960
Item Index: 1192 021 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 5×35 RM CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 28.8 Cable Weight (approx.) kg/km: 2232 Cu Index: 1680
Item Index: 1192 037 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 4×35 RM CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 26.1 Cable Weight (approx.) kg/km: 1819 Cu Index: 1344
Item Index: 1192 022 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 5×50 RM CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 33.2 Cable Weight (approx.) kg/km: 3023 Cu Index: 2400
Item Index: 1192 023 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 5×70 RM CPR Class: Outer Diameter (approx.) mm: 38.2 Cable Weight (approx.) kg/km: 4206 Cu Index: 3360
Item Index: 1192 024 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 3×6 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 12.9 Cable Weight (approx.) kg/km: 345 Cu Index: 172.8
Item Index: 1192 025 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 5×4 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 14.1 Cable Weight (approx.) kg/km: 395 Cu Index: 192
Item Index: 1192 011 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 5×10 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 17.8 Cable Weight (approx.) kg/km: 757 Cu Index: 480
Item Index: 1192 012 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 5×2,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 12.9 Cable Weight (approx.) kg/km: 301 Cu Index: 120
Item Index: 1192 013 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 5×6 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 15.7 Cable Weight (approx.) kg/km: 524 Cu Index: 288
Item Index: 1192 014 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 5×16 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 20.3 Cable Weight (approx.) kg/km: 1086 Cu Index: 768
Item Index: 1192 017 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 7×1,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 12.9 Cable Weight (approx.) kg/km: 285 Cu Index: 100.8
Item Index: 1192 018 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 4×1,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 10.9 Cable Weight (approx.) kg/km: 198 Cu Index: 57.6
Item Index: 1192 019 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 3×4 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 11.8 Cable Weight (approx.) kg/km: 268 Cu Index: 115.2
Item Index: 1192 020 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 5×25 RM CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 26 Cable Weight (approx.) kg/km: 1703 Cu Index: 1200
Item Index: 1192 005 33 Item Name: (N)HXH FE180 PH90/E90 0,6/1 kV 4×1,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 10.9 Cable Weight (approx.) kg/km: 198 Cu Index: 57.6
Item Index: 1192 006 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 4×50 RM CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 29.9 Cable Weight (approx.) kg/km: 2450 Cu Index: 1920
Item Index: 1192 009 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 3×1,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 10 Cable Weight (approx.) kg/km: 165 Cu Index: 43.2
Item Index: 1192 010 33 Item Name: (N)HXH-J FE180 PH90/E90 0,6/1 kV 3×2,5 RE CPR Class: B2ca-s1b,d0,a1 Outer Diameter (approx.) mm: 10.8 Cable Weight (approx.) kg/km: 207 Cu Index: 72
